20-1000 Gallon | Top Entry Mixer

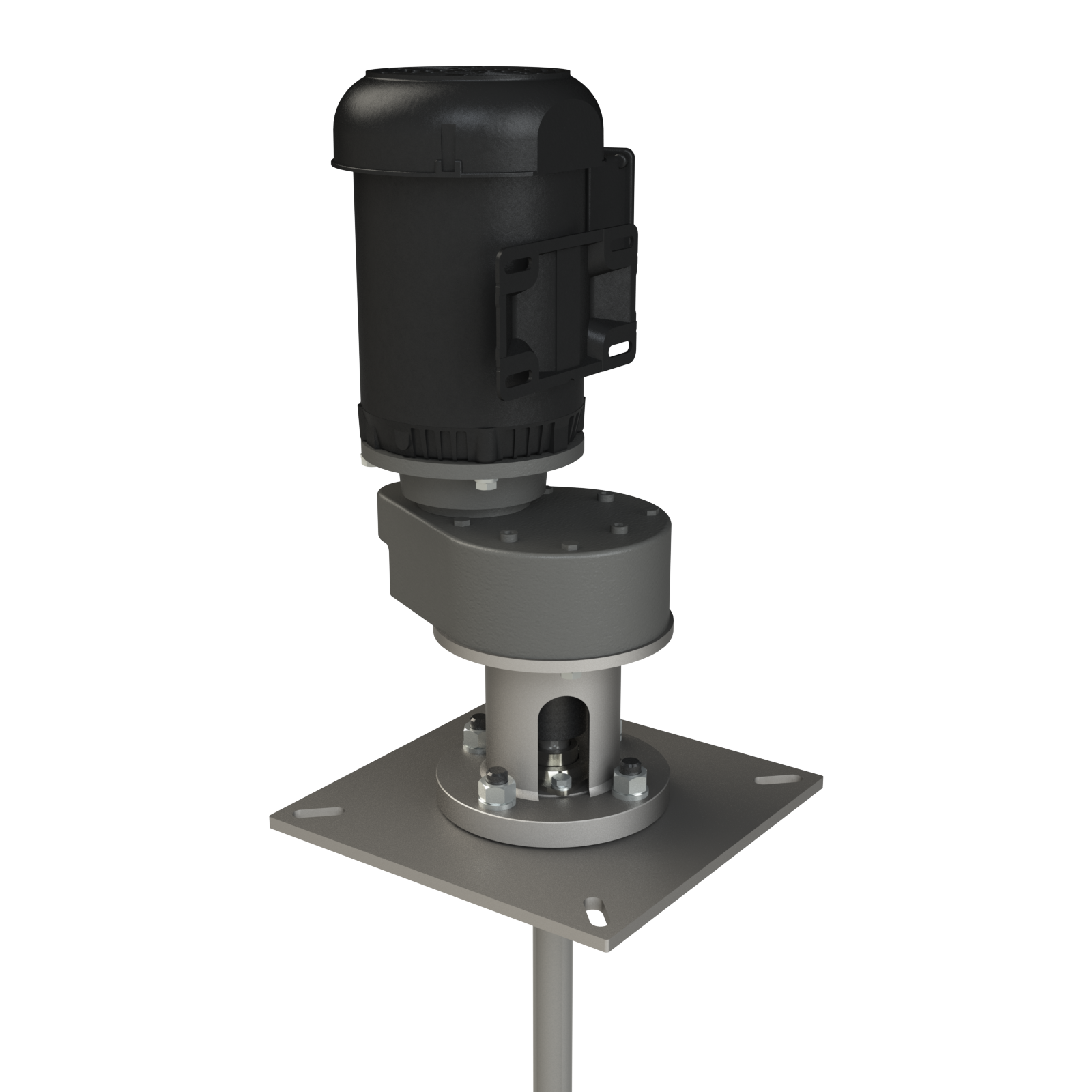

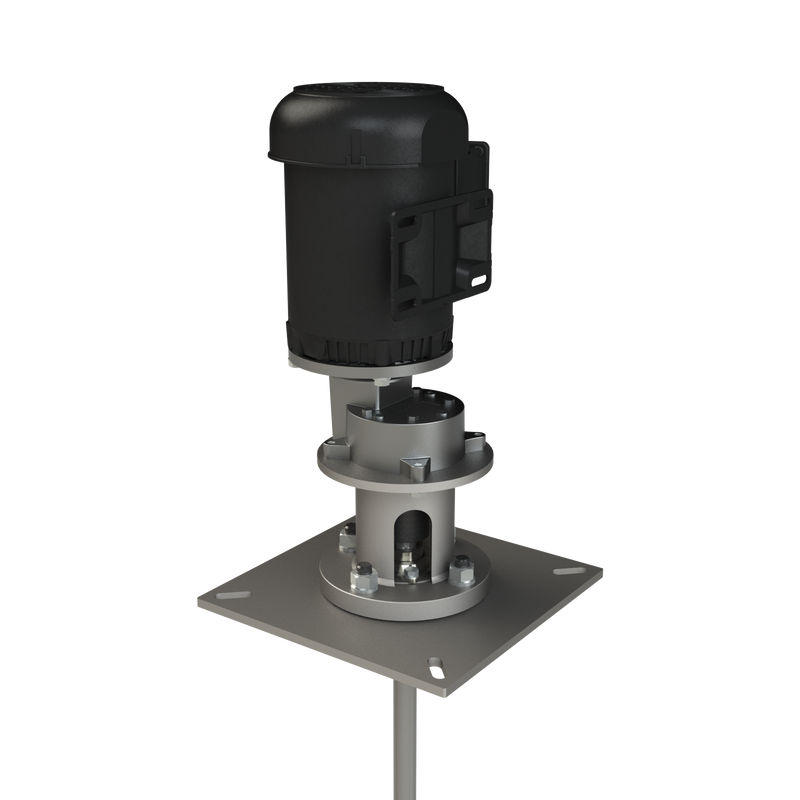

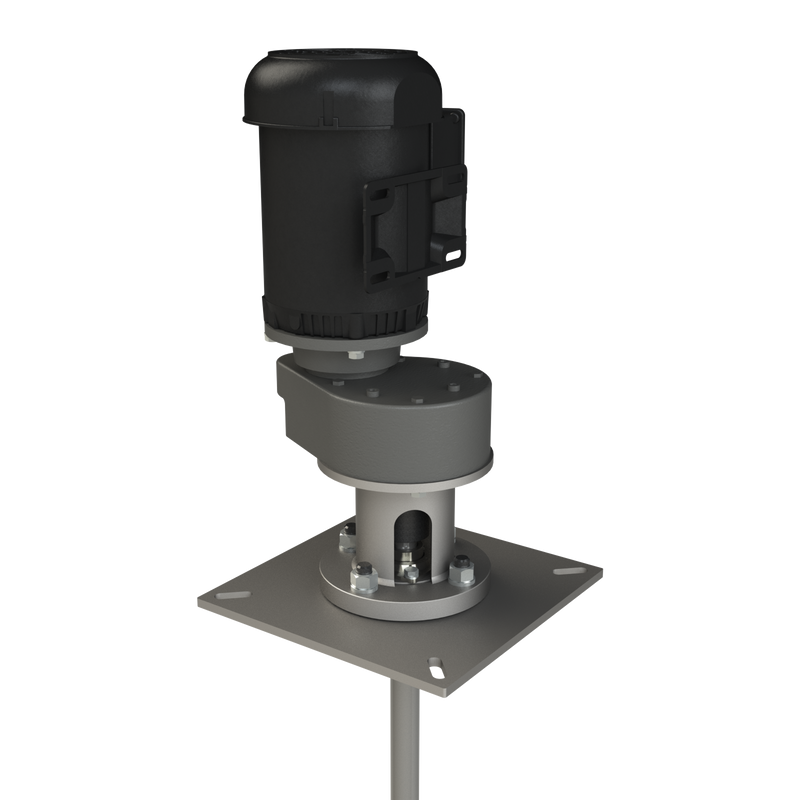

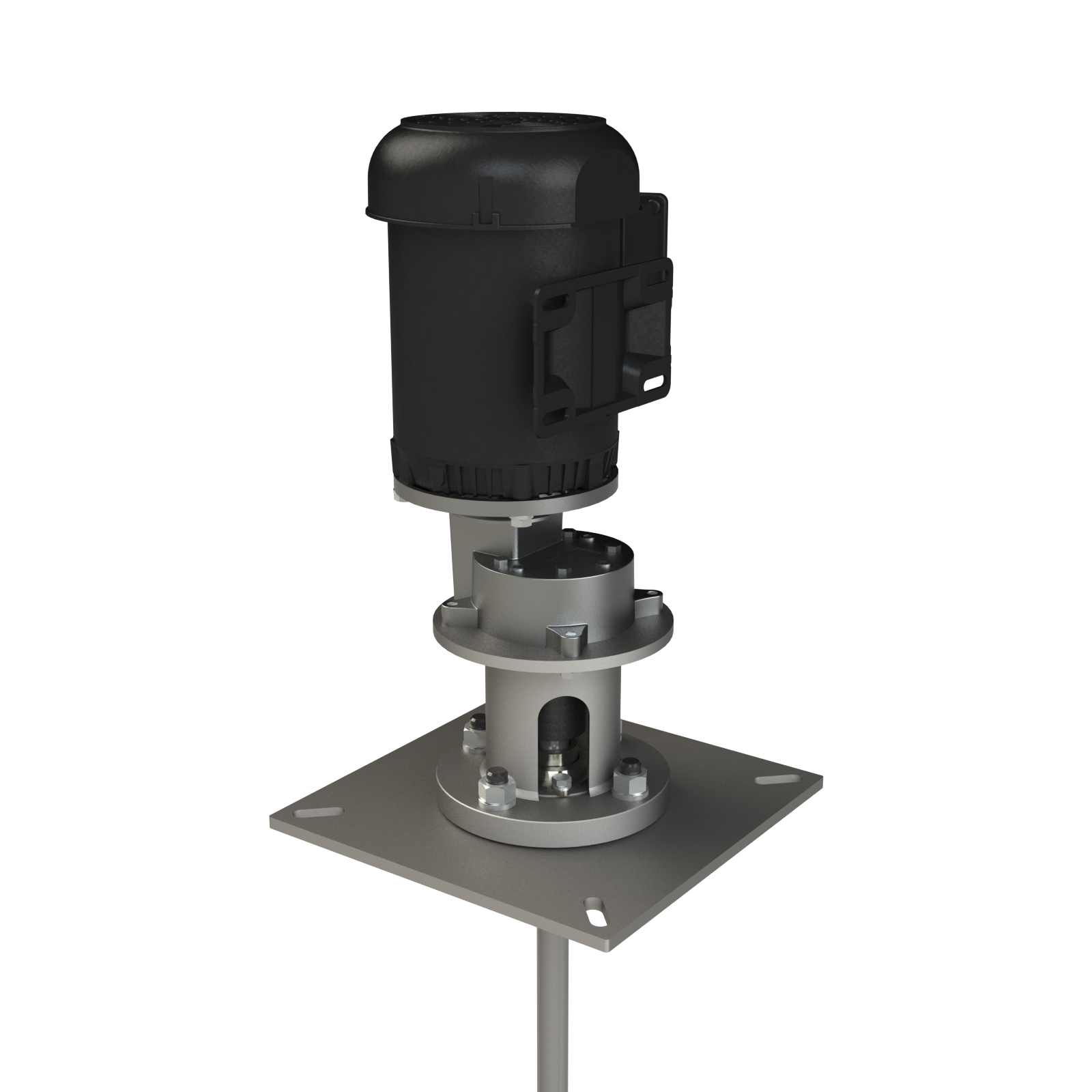

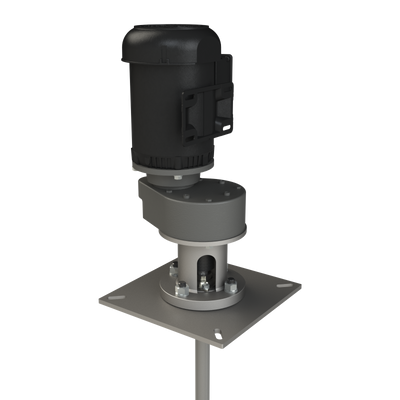

Electric Gear Drive Plate Mount Mixer

Name: Electric Gear Drive Plate Mount Mixer
Brand: Mixer Direct
SKU: PLT033VGD
Price: 4040.0 USD
Availability: InStock

Price

Lead Time: 3 Business Days

Specially designed to mix volumes under 1000 gallons, these portable mixers are quickly and easily mounted to a bridge on open top vessels. A low maintenance solution to many processing applications.

Part Number: PLT033VGD

[{"id":40378842841111,"title":"1\/3 \/ Yes","option1":"1\/3","option2":"Yes","option3":null,"sku":"PLT033VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1\/3 \/ Yes","public_title":"1\/3 \/ Yes","options":["1\/3","Yes"],"price":404000,"weight":38555,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842873879,"title":"1\/3 \/ No","option1":"1\/3","option2":"No","option3":null,"sku":"PLT033EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1\/3 \/ No","public_title":"1\/3 \/ No","options":["1\/3","No"],"price":310000,"weight":35834,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842906647,"title":"1\/2 \/ Yes","option1":"1\/2","option2":"Yes","option3":null,"sku":"PLT050VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1\/2 \/ Yes","public_title":"1\/2 \/ Yes","options":["1\/2","Yes"],"price":442000,"weight":42638,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842939415,"title":"1\/2 \/ No","option1":"1\/2","option2":"No","option3":null,"sku":"PLT050EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1\/2 \/ No","public_title":"1\/2 \/ No","options":["1\/2","No"],"price":348000,"weight":39009,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378842972183,"title":"3\/4 \/ Yes","option1":"3\/4","option2":"Yes","option3":null,"sku":"PLT075VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 3\/4 \/ Yes","public_title":"3\/4 \/ Yes","options":["3\/4","Yes"],"price":465100,"weight":44452,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843004951,"title":"3\/4 \/ No","option1":"3\/4","option2":"No","option3":null,"sku":"PLT075EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 3\/4 \/ No","public_title":"3\/4 \/ No","options":["3\/4","No"],"price":375500,"weight":45359,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843037719,"title":"1 \/ Yes","option1":"1","option2":"Yes","option3":null,"sku":"PLT100VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1 \/ Yes","public_title":"1 \/ Yes","options":["1","Yes"],"price":502300,"weight":46720,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843070487,"title":"1 \/ No","option1":"1","option2":"No","option3":null,"sku":"PLT100EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1 \/ No","public_title":"1 \/ No","options":["1","No"],"price":412700,"weight":48081,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843103255,"title":"1.5 \/ Yes","option1":"1.5","option2":"Yes","option3":null,"sku":"PLT150VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1.5 \/ Yes","public_title":"1.5 \/ Yes","options":["1.5","Yes"],"price":543600,"weight":48534,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843136023,"title":"1.5 \/ No","option1":"1.5","option2":"No","option3":null,"sku":"PLT150EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 1.5 \/ No","public_title":"1.5 \/ No","options":["1.5","No"],"price":447700,"weight":52163,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843168791,"title":"2 \/ Yes","option1":"2","option2":"Yes","option3":null,"sku":"PLT200VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 2 \/ Yes","public_title":"2 \/ Yes","options":["2","Yes"],"price":578600,"weight":49895,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843201559,"title":"2 \/ No","option1":"2","option2":"No","option3":null,"sku":"PLT200EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 2 \/ No","public_title":"2 \/ No","options":["2","No"],"price":470400,"weight":52163,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843234327,"title":"3 \/ Yes","option1":"3","option2":"Yes","option3":null,"sku":"PLT300VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 3 \/ Yes","public_title":"3 \/ Yes","options":["3","Yes"],"price":688400,"weight":52163,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378843267095,"title":"3 \/ No","option1":"3","option2":"No","option3":null,"sku":"PLT300EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Plate Mount Mixer - 3 \/ No","public_title":"3 \/ No","options":["3","No"],"price":558000,"weight":56245,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Combining properties of portable mixers and top-entry mixers, our plate mounted mixers are an ideal solution for applications that require some versatility in their mixing processes without sacrificing mixing or blending capabilities.

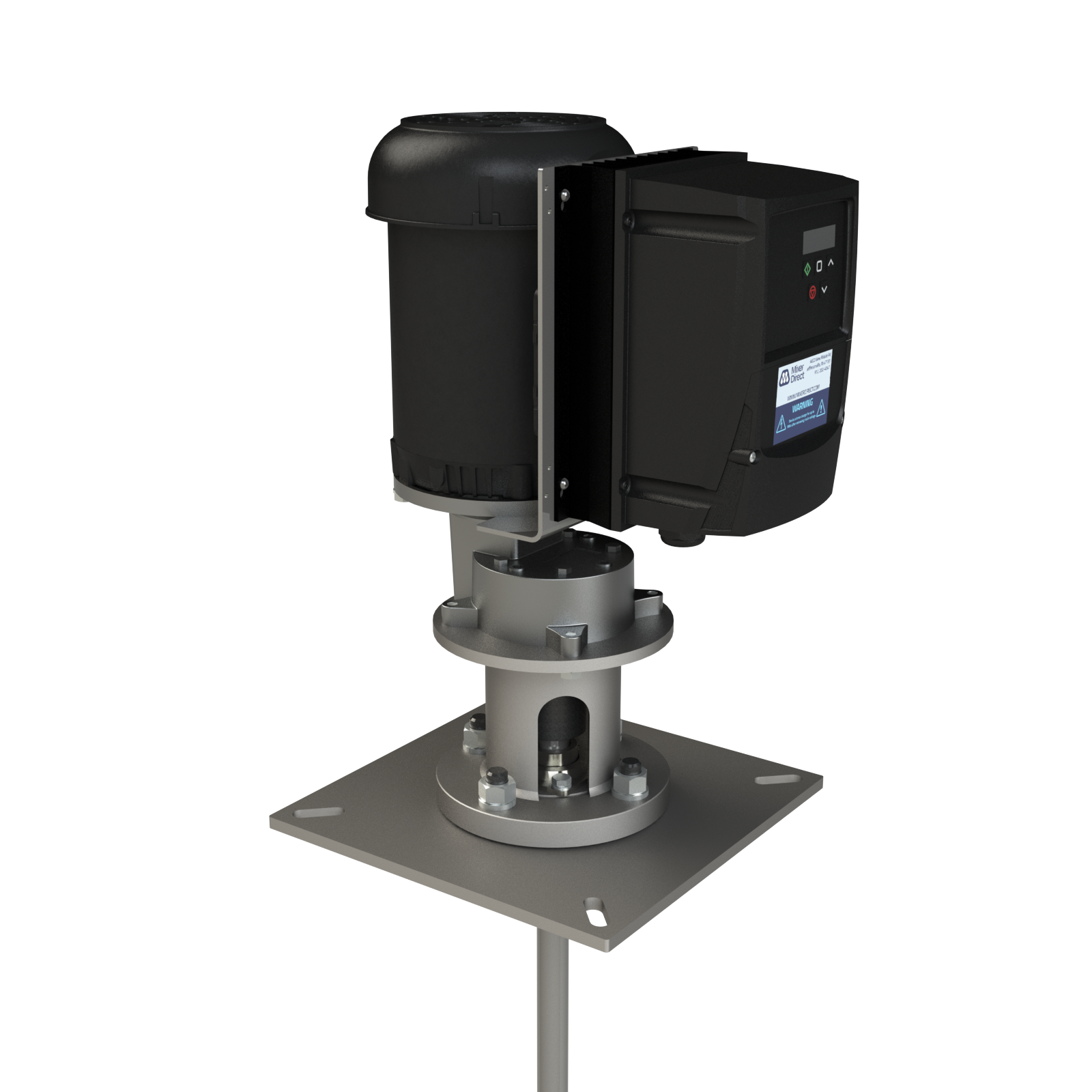

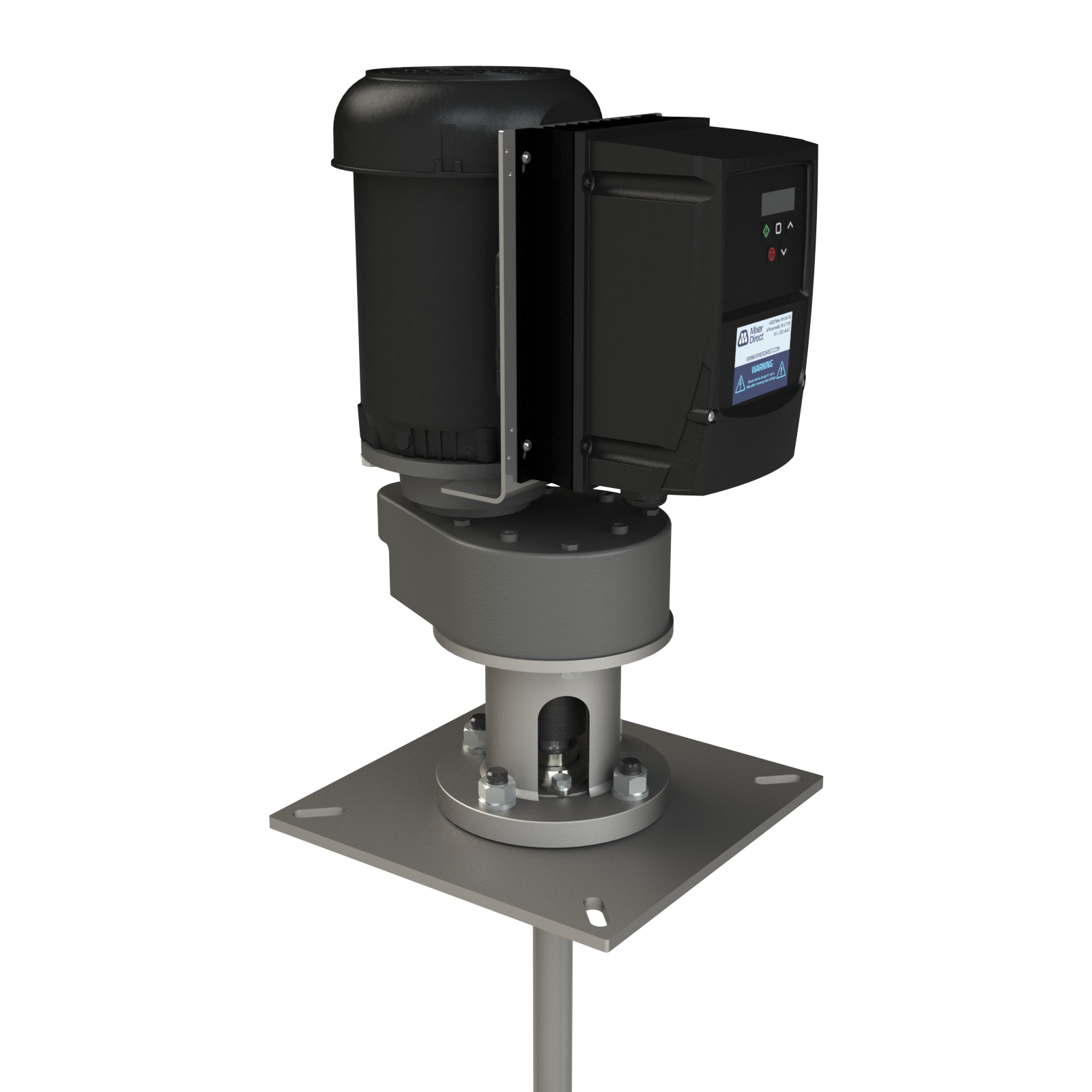

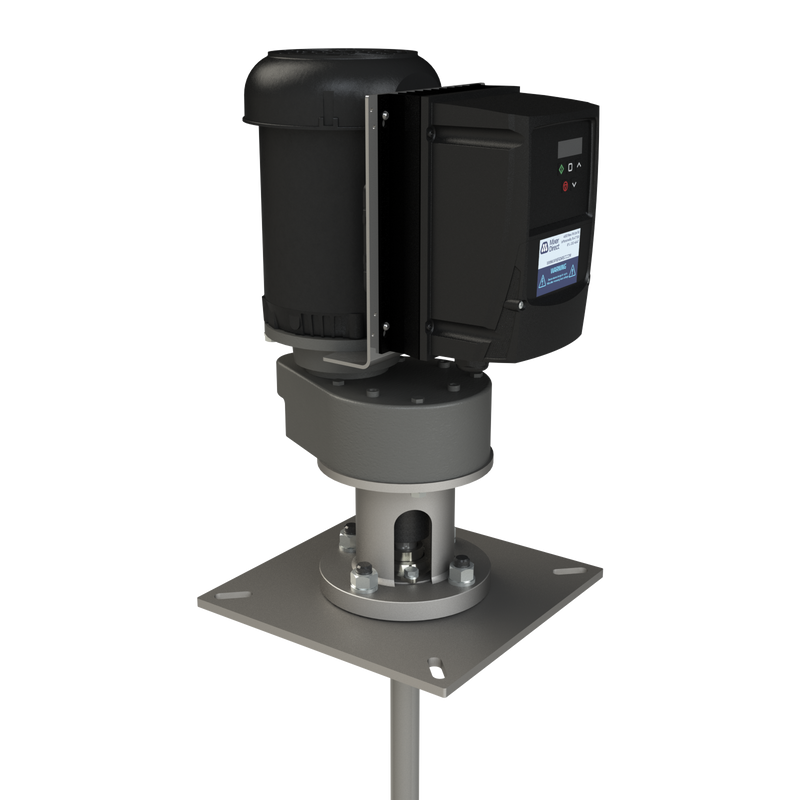

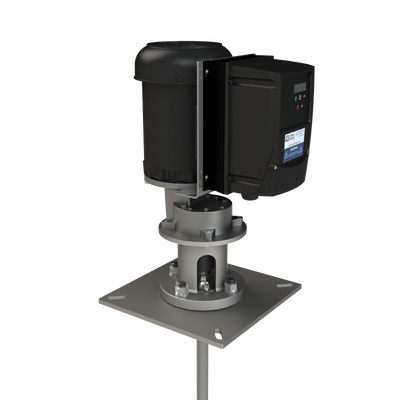

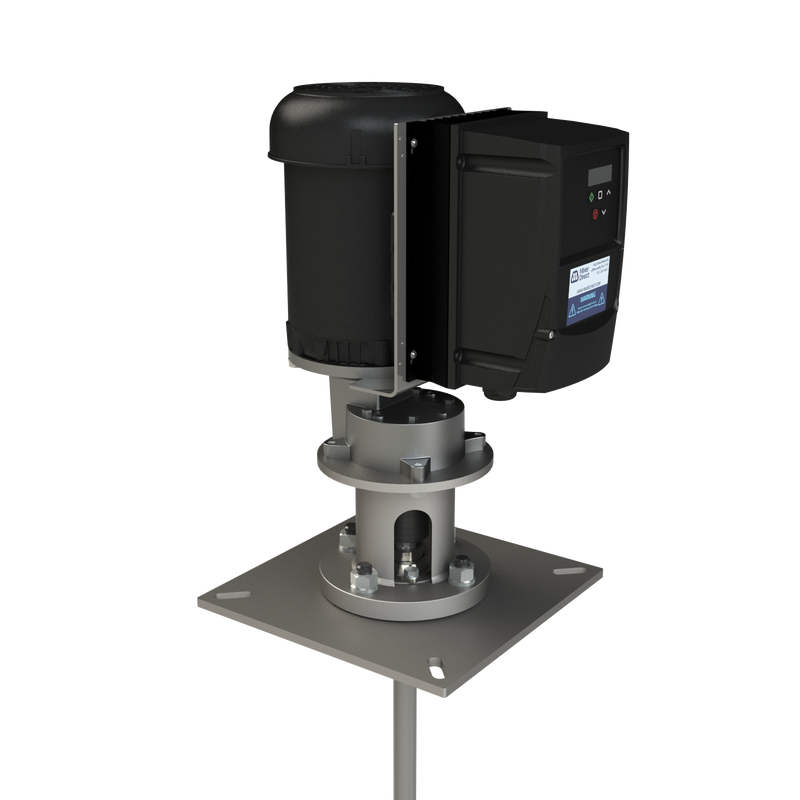

Heavy-duty electric motor with optional VFD
Mounts with a 12" x 12" standard plate
Gear driven motor operates at a 5:1 ratio, allowing for lower RPMs and higher torque
Wetted materials constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance
Horsepower selection available, with a matching high-efficiency impeller for optimal performance

Item Number PLT033VGD
Enclosure type IP55
Gearbox ratio 5:1
Horsepower 1/3 HP
Impeller attachment Set screw
Impeller diameter 10 in.
Impeller material 316SS

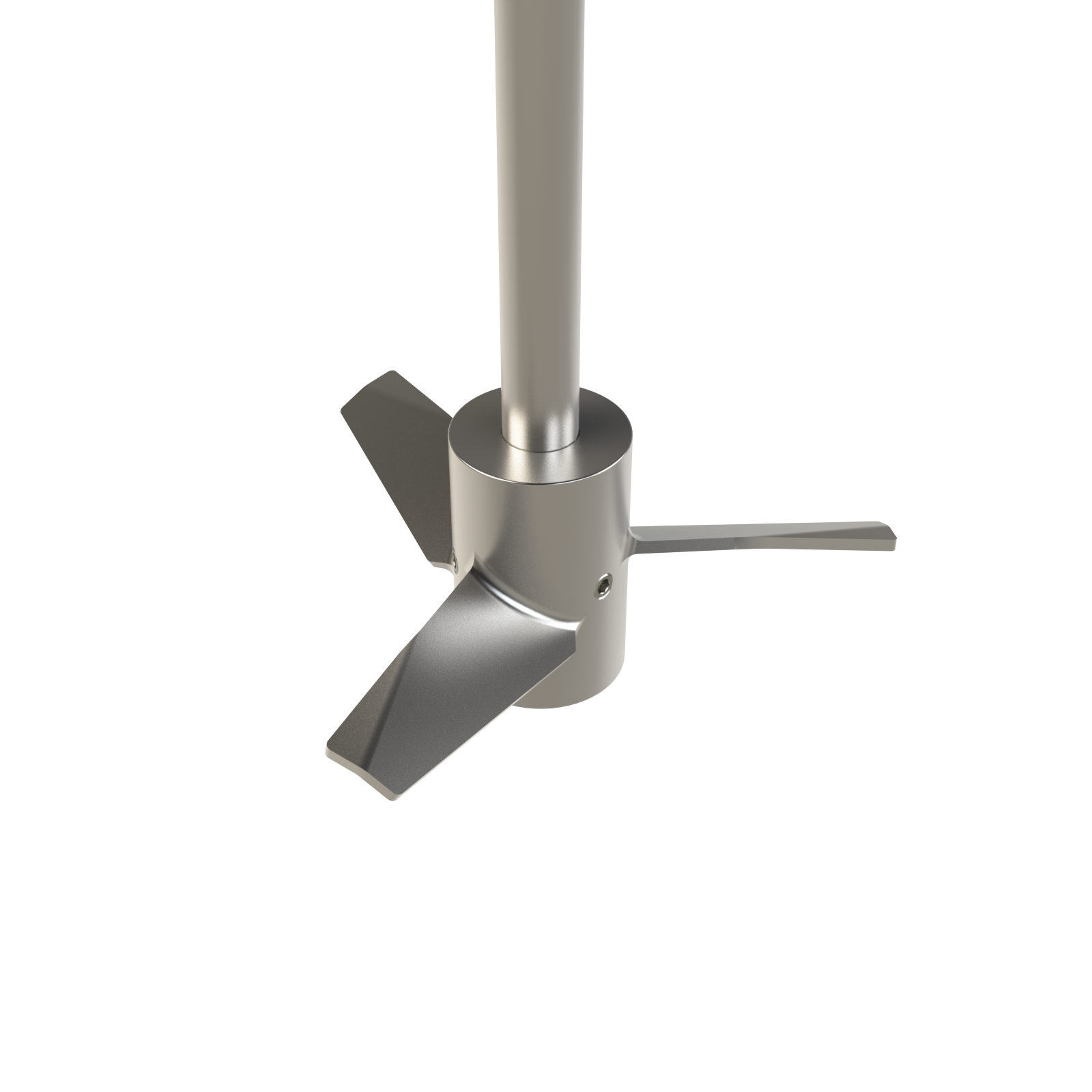

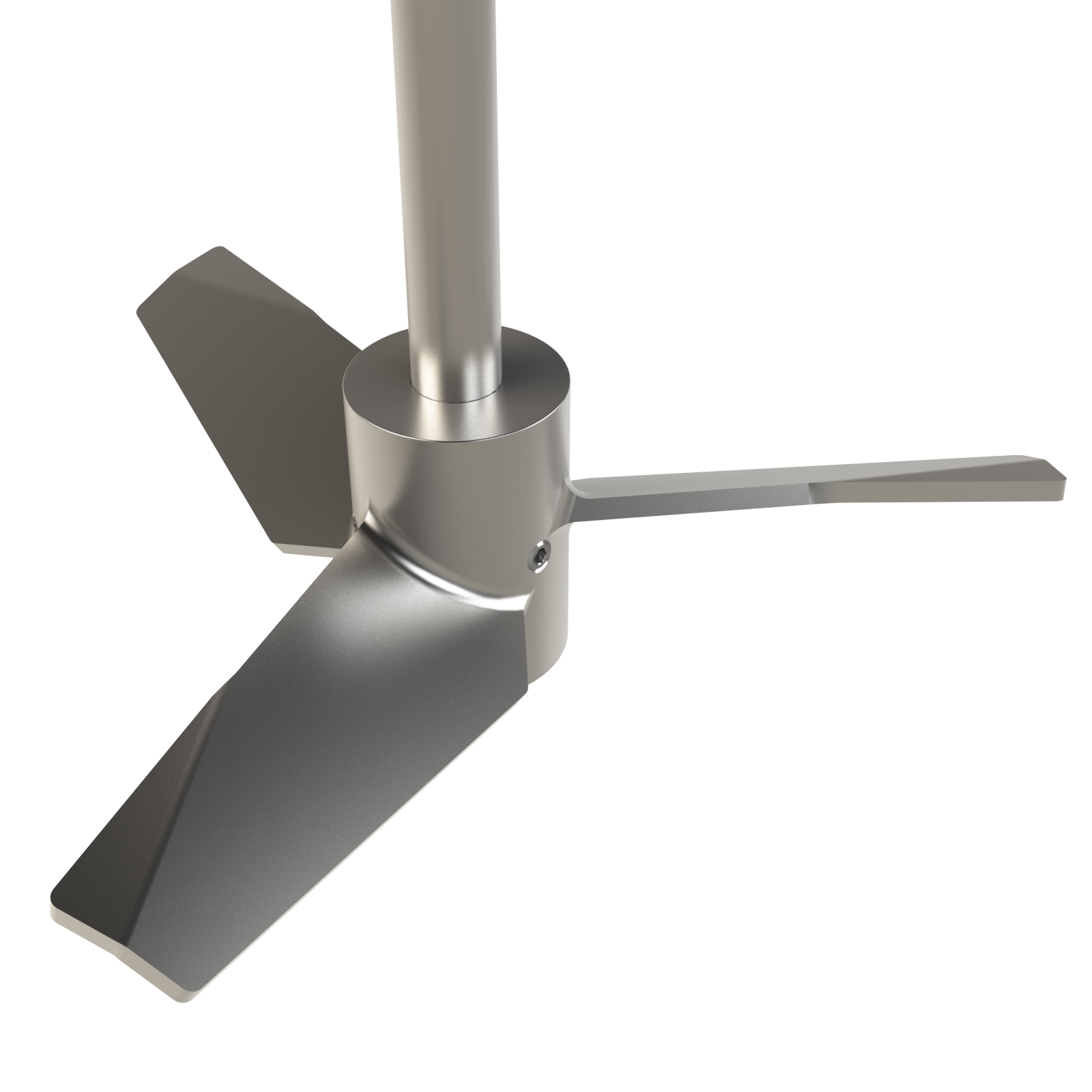

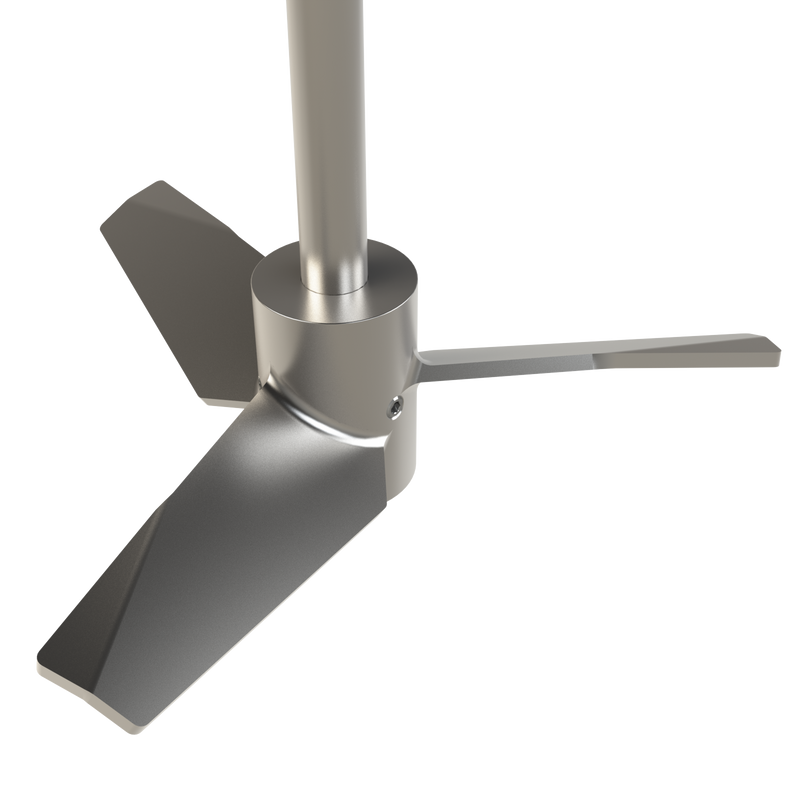

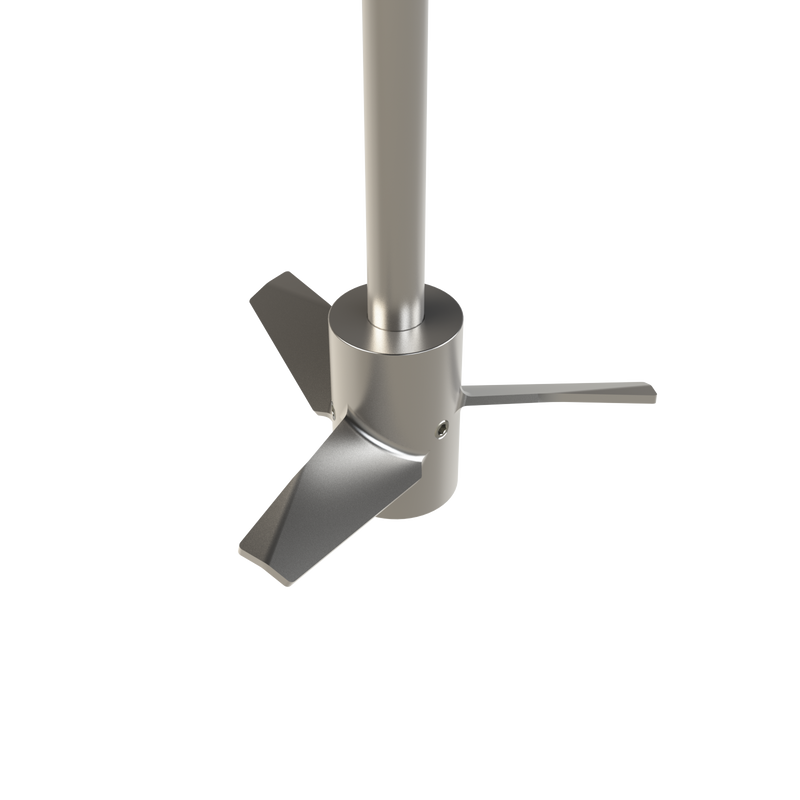

Impeller type Hydrofoil
Lead time 3 Business Days
Motor type TEFC Electric
Mount Plate
Mount dimension 12x12x3/8
Number of impellers 1
Phase 1 Ph.
Rpm 350
Shaft diameter 1 in.
Shaft length 36 in.
Shaft material 316SS
Speed controller Variable Frequency Drive (VFD)
Voltage 115V
