20-1000 Gallon | Top Entry Mixer

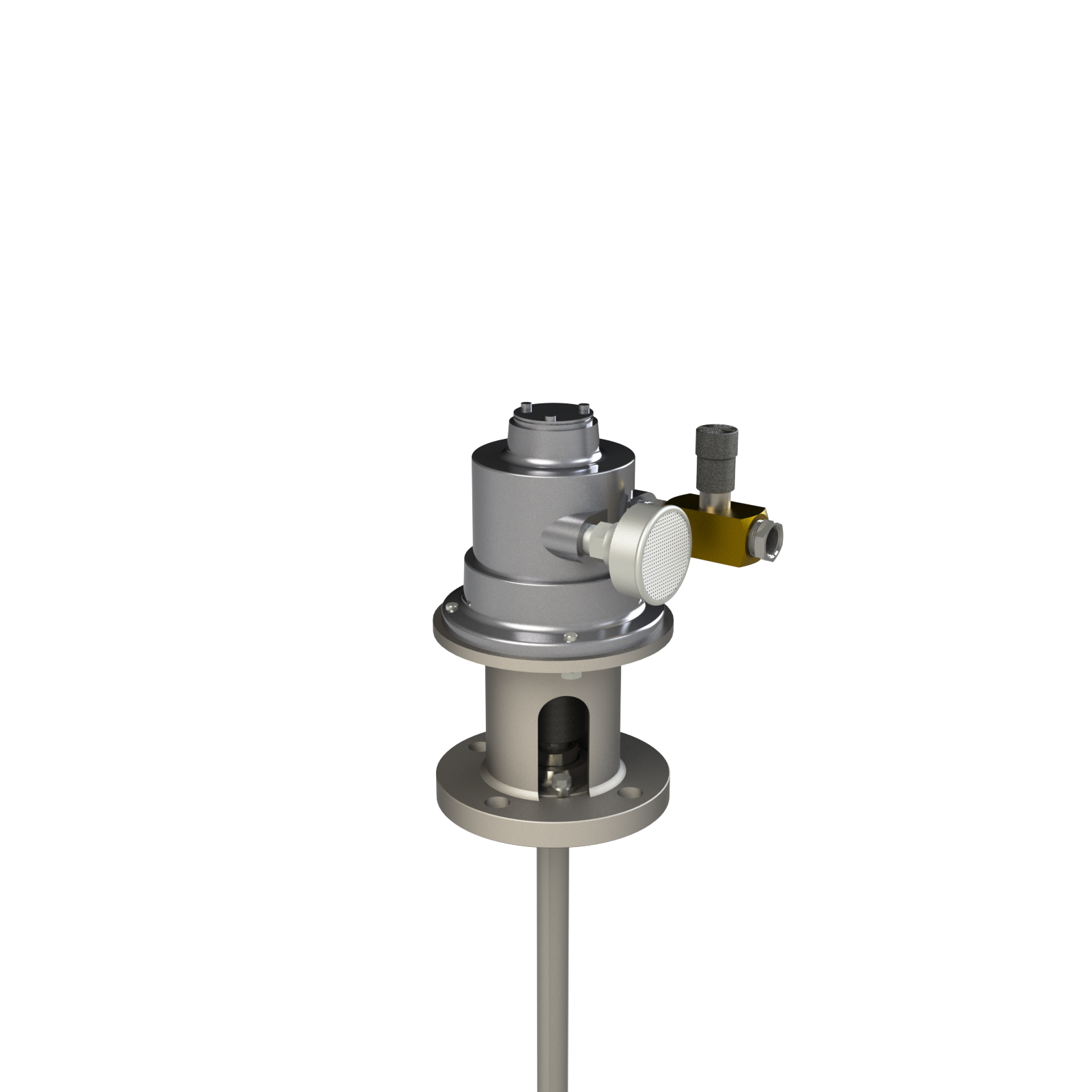

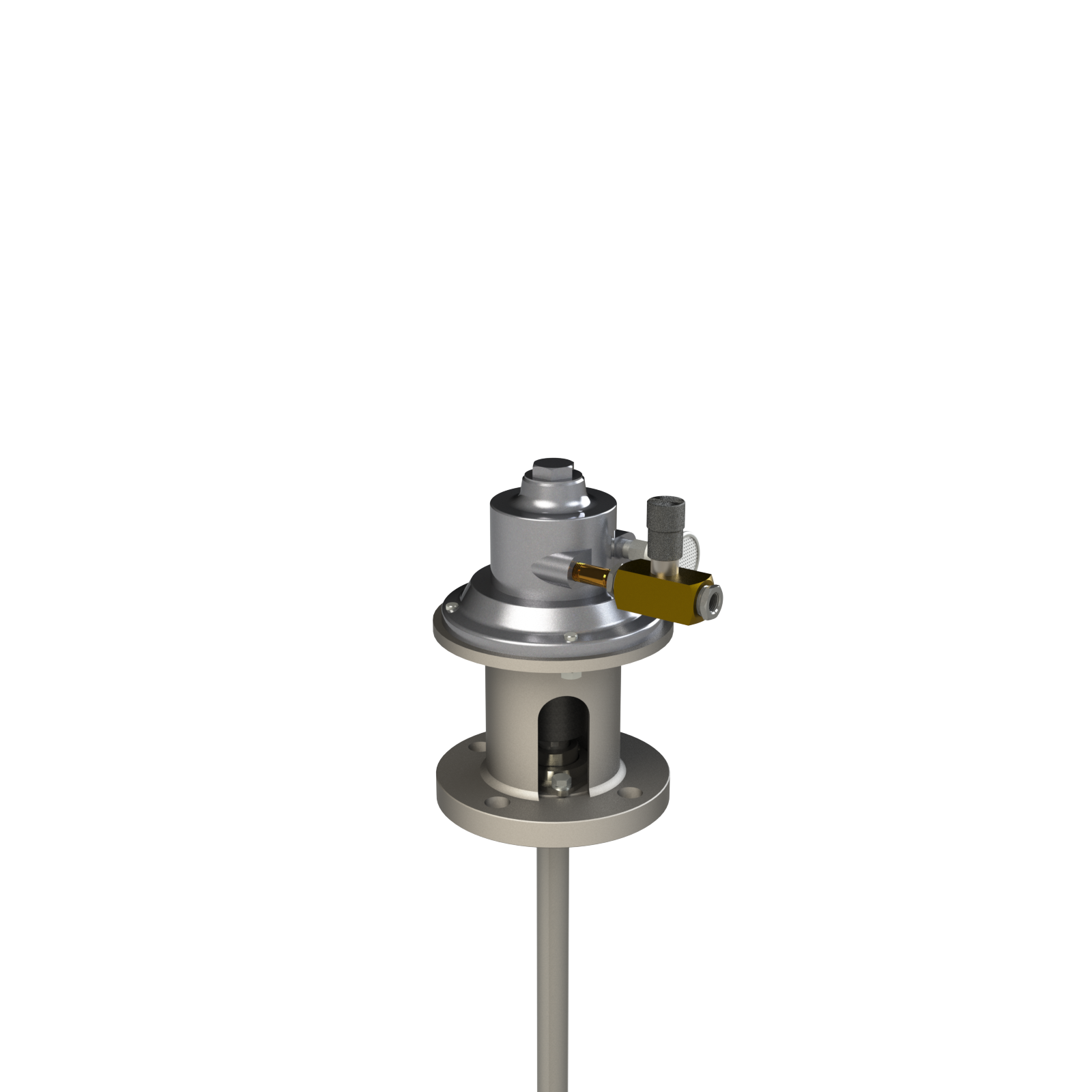

Air Direct Drive Flange Mount Mixer

Name: Air Direct Drive Flange Mount Mixer
Brand: Mixer Direct
SKU: FLG075ADD
Price: 2256.0 USD
Availability: InStock

Price

Lead Time: 3 Business Days

Specially designed to mix volumes under 1000 gallons, these portable mixers are quickly and easily mounted to standard flange fittings. A low maintenance solution to many processing applications.

Part Number: FLG075ADD

[{"id":40378840186903,"title":"3\/4 \/ No Seal","option1":"3\/4","option2":"No Seal","option3":null,"sku":"FLG075ADD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Air Direct Drive Flange Mount Mixer - 3\/4 \/ No Seal","public_title":"3\/4 \/ No Seal","options":["3\/4","No Seal"],"price":225600,"weight":17237,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378840219671,"title":"3\/4 \/ Viton Lip Seal","option1":"3\/4","option2":"Viton Lip Seal","option3":null,"sku":"FLG075ADD-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Air Direct Drive Flange Mount Mixer - 3\/4 \/ Viton Lip Seal","public_title":"3\/4 \/ Viton Lip Seal","options":["3\/4","Viton Lip Seal"],"price":252300,"weight":17237,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378840252439,"title":"1.5 \/ No Seal","option1":"1.5","option2":"No Seal","option3":null,"sku":"FLG150ADD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Air Direct Drive Flange Mount Mixer - 1.5 \/ No Seal","public_title":"1.5 \/ No Seal","options":["1.5","No Seal"],"price":257100,"weight":20412,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378840285207,"title":"1.5 \/ Viton Lip Seal","option1":"1.5","option2":"Viton Lip Seal","option3":null,"sku":"FLG150ADD-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Air Direct Drive Flange Mount Mixer - 1.5 \/ Viton Lip Seal","public_title":"1.5 \/ Viton Lip Seal","options":["1.5","Viton Lip Seal"],"price":283800,"weight":20412,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378840317975,"title":"4 \/ No Seal","option1":"4","option2":"No Seal","option3":null,"sku":"FLG400ADD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Air Direct Drive Flange Mount Mixer - 4 \/ No Seal","public_title":"4 \/ No Seal","options":["4","No Seal"],"price":334900,"weight":28576,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378840350743,"title":"4 \/ Viton Lip Seal","option1":"4","option2":"Viton Lip Seal","option3":null,"sku":"FLG400ADD-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Air Direct Drive Flange Mount Mixer - 4 \/ Viton Lip Seal","public_title":"4 \/ Viton Lip Seal","options":["4","Viton Lip Seal"],"price":361600,"weight":28576,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Combining properties of portable mixers and top-entry mixers, our flange mounted mixers are an ideal solution for applications that require some versatility in their mixing processes without sacrificing mixing or blending capabilities.

Extra flange mounted support bearing and all-welded construction
Heavy-duty air motor ensures safety in hazardous environments
Mounts to a 2.5 inch 150# ANSI flange
Wetted materials constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance
Optional Viton Lip Seal for increased protection to the mixer and liquid ingredients
Horsepower selection available, with a matching high-efficiency impeller for optimal performance

Item Number FLG075ADD
Air motor requirement 30cfm @ 100psi
Horsepower 3/4 HP
Impeller attachment Set screw
Impeller diameter 4 in.
Impeller material 316SS
Impeller type Propeller
Lead time 3 Business Days
Motor type Air Motor
Mount 150# ANSI Flange
Mount dimension 2.5 in.
Number of impellers 1
Rpm 0-3000
Shaft diameter 1 in.
Shaft length 36 in.
Shaft material 316SS
Speed controller Brass Precision Needle Valve
