Explosion Proof Gear Drive Tote Bracket Mount Mixer

20-1000 Gallon | Variable Width Bracket

Explosion Proof Gear Drive Tote Bracket Mount Mixer

Name: Explosion Proof Gear Drive Tote Bracket Mount Mixer
Brand: Mixer Direct
SKU: TBM050XGD
Price: 4011.0 USD
Availability: InStock

Price

Lead Time: 3 Business Days

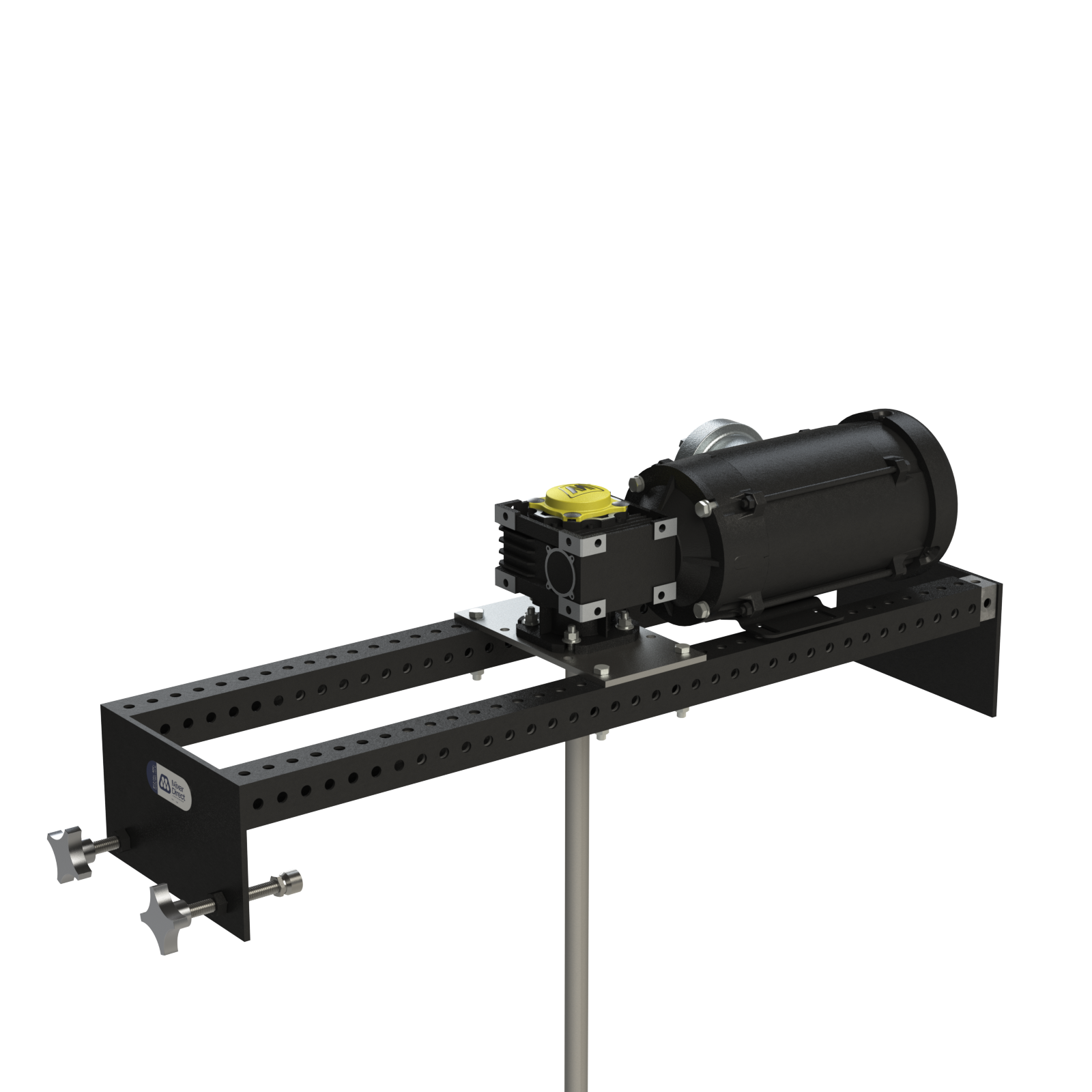

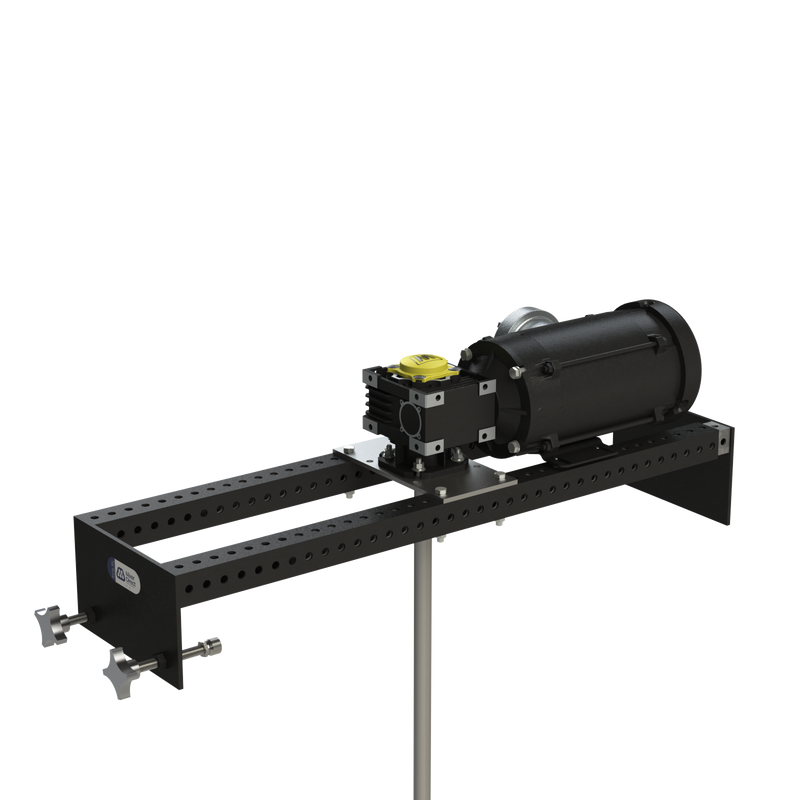

Uniquely designed to quickly and easily attach to a standard IBC tote or other open top vessel, this tote mixer provides a portable solution to mixing ingredients directly in their shipping or storage vessel. Easily adjust the width of the bracket to securely attach to a variety of vessels.

Part Number: TBM050XGD

[{"id":40378928627735,"title":"1\/2","option1":"1\/2","option2":null,"option3":null,"sku":"TBM050XGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Explosion Proof Gear Drive Tote Bracket Mount Mixer - 1\/2","public_title":"1\/2","options":["1\/2"],"price":401100,"weight":37195,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378928660503,"title":"3\/4","option1":"3\/4","option2":null,"option3":null,"sku":"TBM075XGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Explosion Proof Gear Drive Tote Bracket Mount Mixer - 3\/4","public_title":"3\/4","options":["3\/4"],"price":410000,"weight":37648,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378928693271,"title":"1.5","option1":"1.5","option2":null,"option3":null,"sku":"TBM150XGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Explosion Proof Gear Drive Tote Bracket Mount Mixer - 1.5","public_title":"1.5","options":["1.5"],"price":425700,"weight":45359,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Our tote bracket mount mixers provide a simple mixing solution for IBC totes and open top vessels.

Features of the Tote Bracket Mixer include:

Bracket frame designed for widths from 36" to 48"
Heavy-duty explosion proof electric motor for use in hazardous environments
Gearbox allows for lower RPMs and higher torque
Wetted materials made of 316 or 304 grade stainless steel for corrosion and abrasion resistance
Option to select desired horsepower

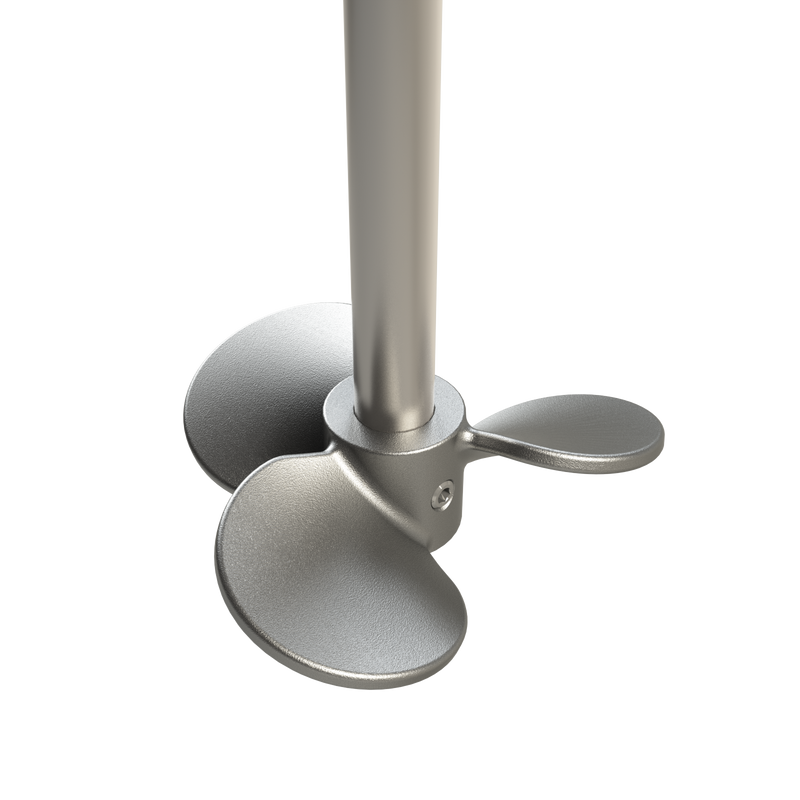

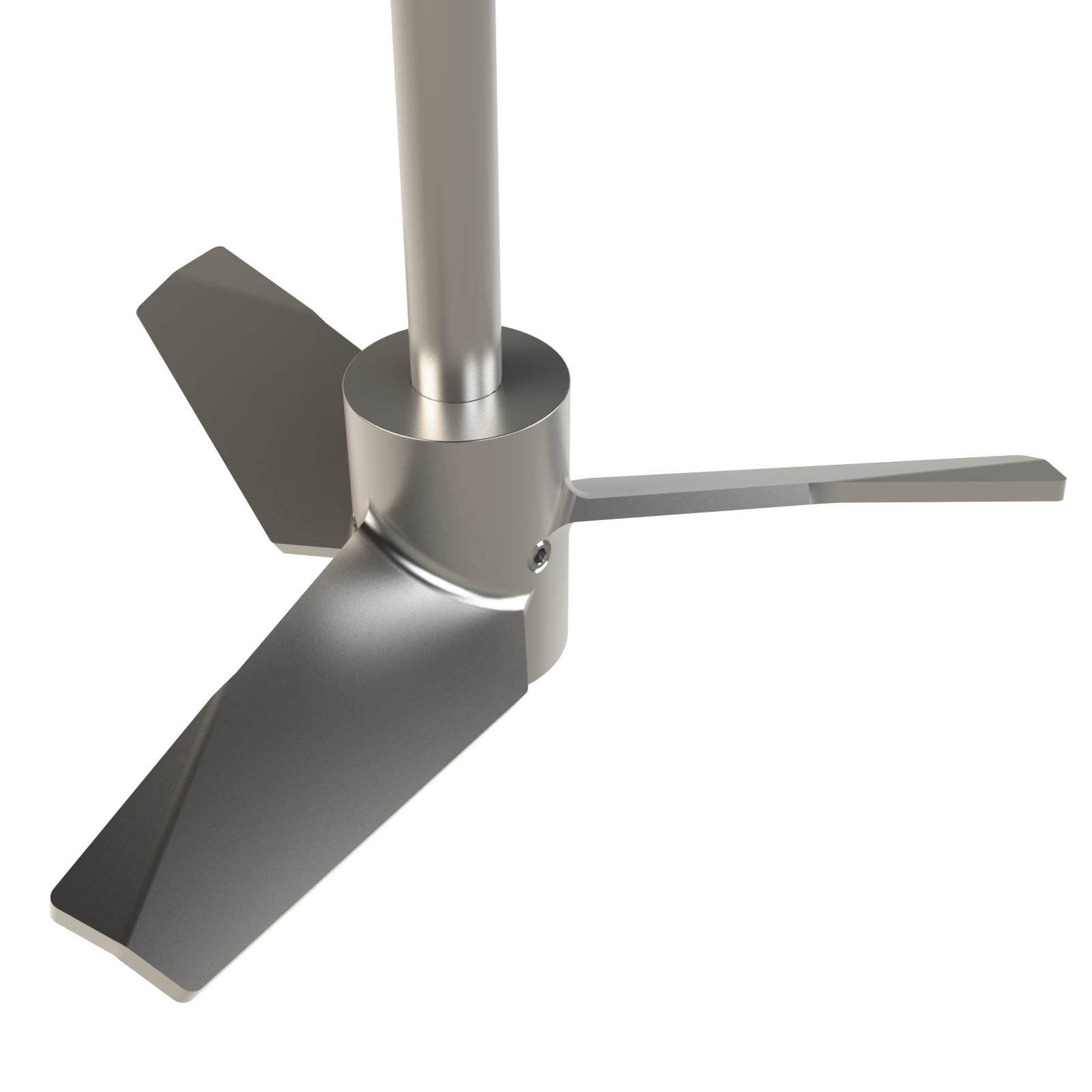

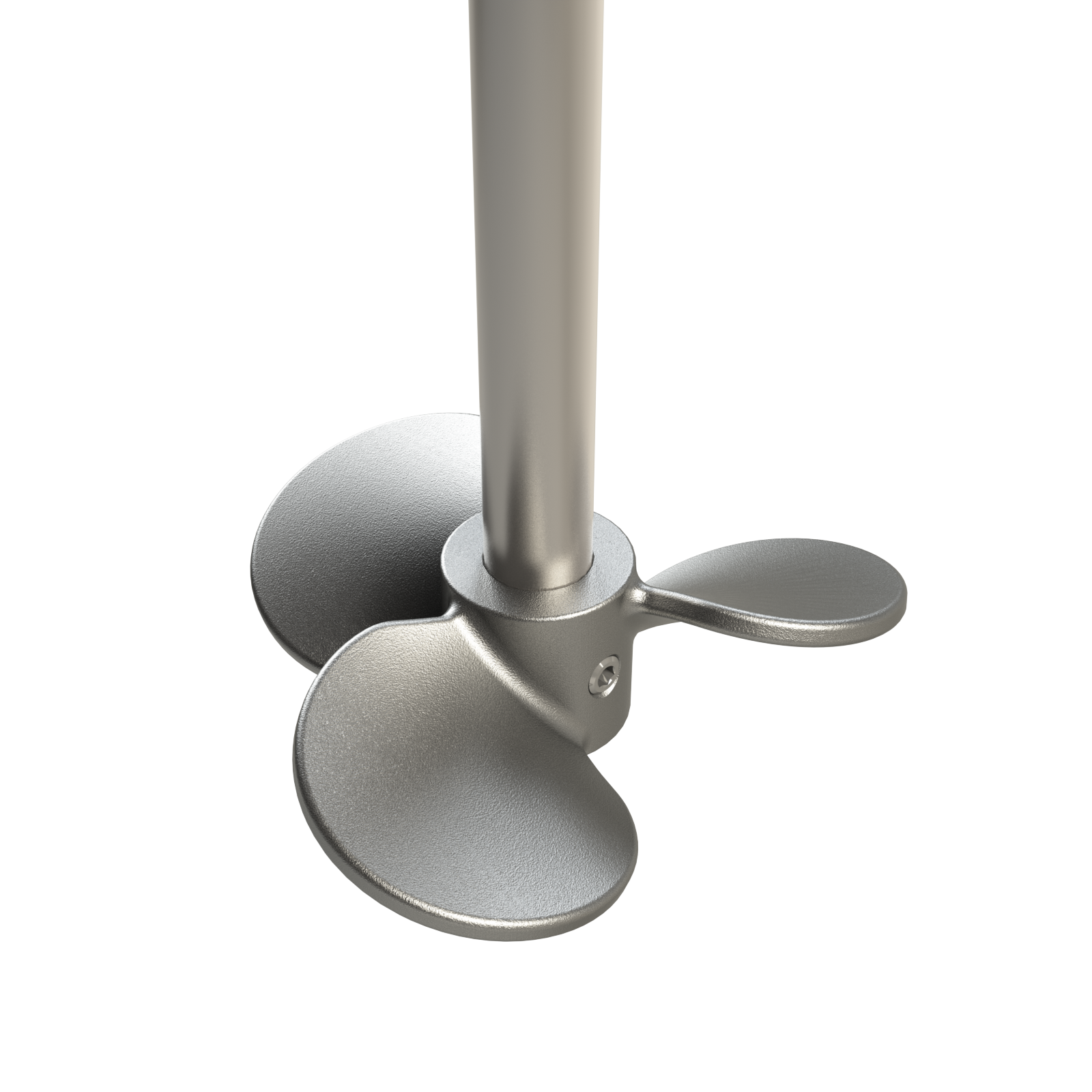

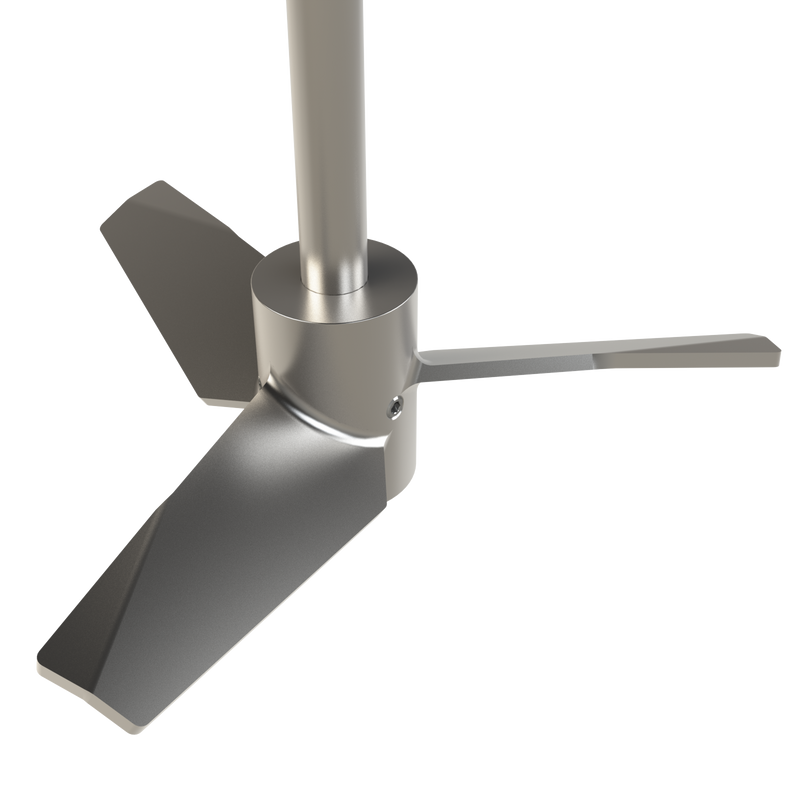

Appropriate propeller, hydrofoil impeller, or folding impeller matched to the selected horsepower

Item Number TBM050XGD
Enclosure type IP55
Gearbox ratio 7.5:1
Horsepower 1/2 HP
Impeller attachment Set screw
Impeller diameter 10 in.
Impeller material 316SS

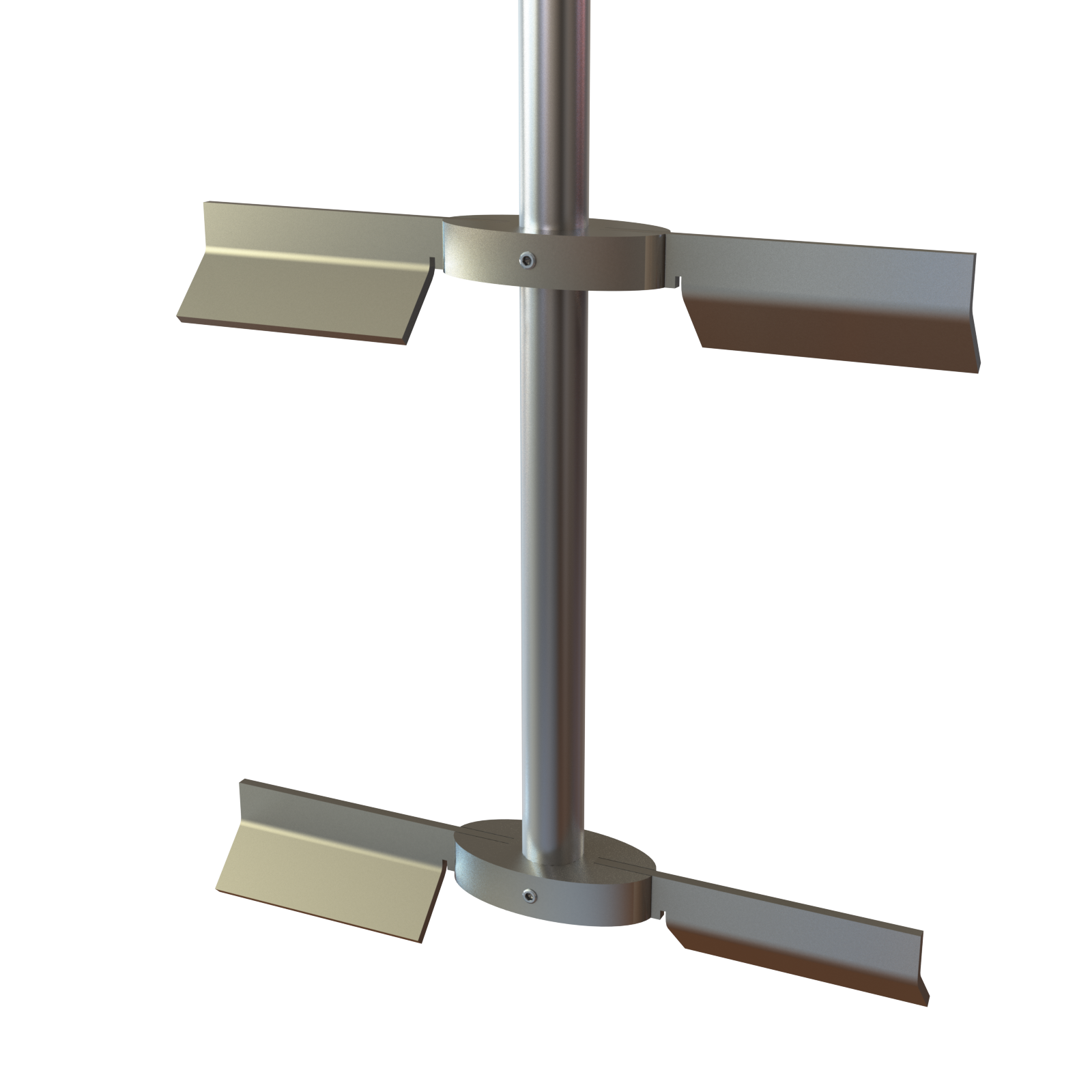

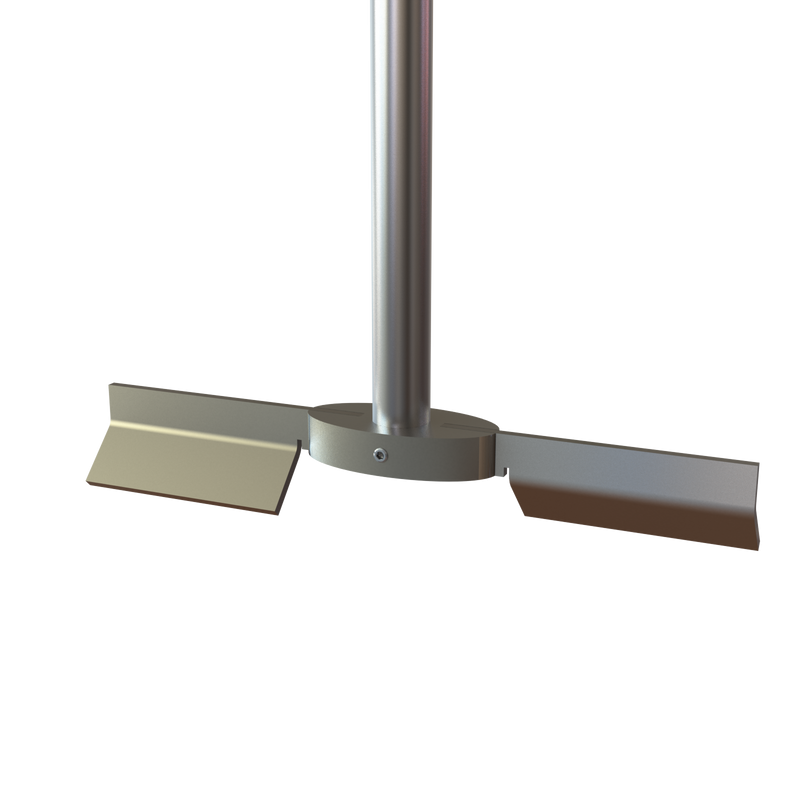

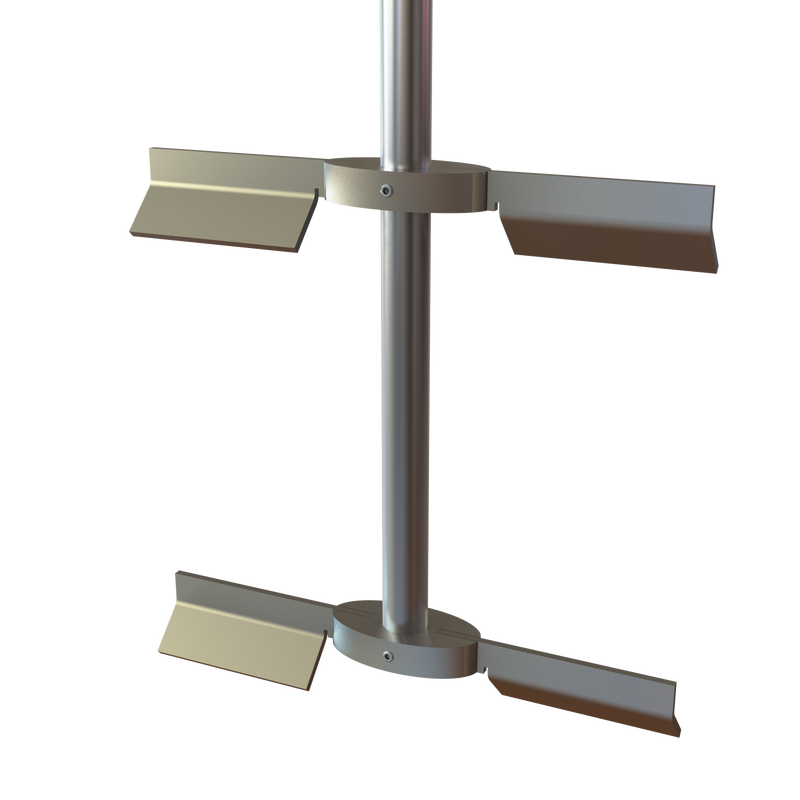

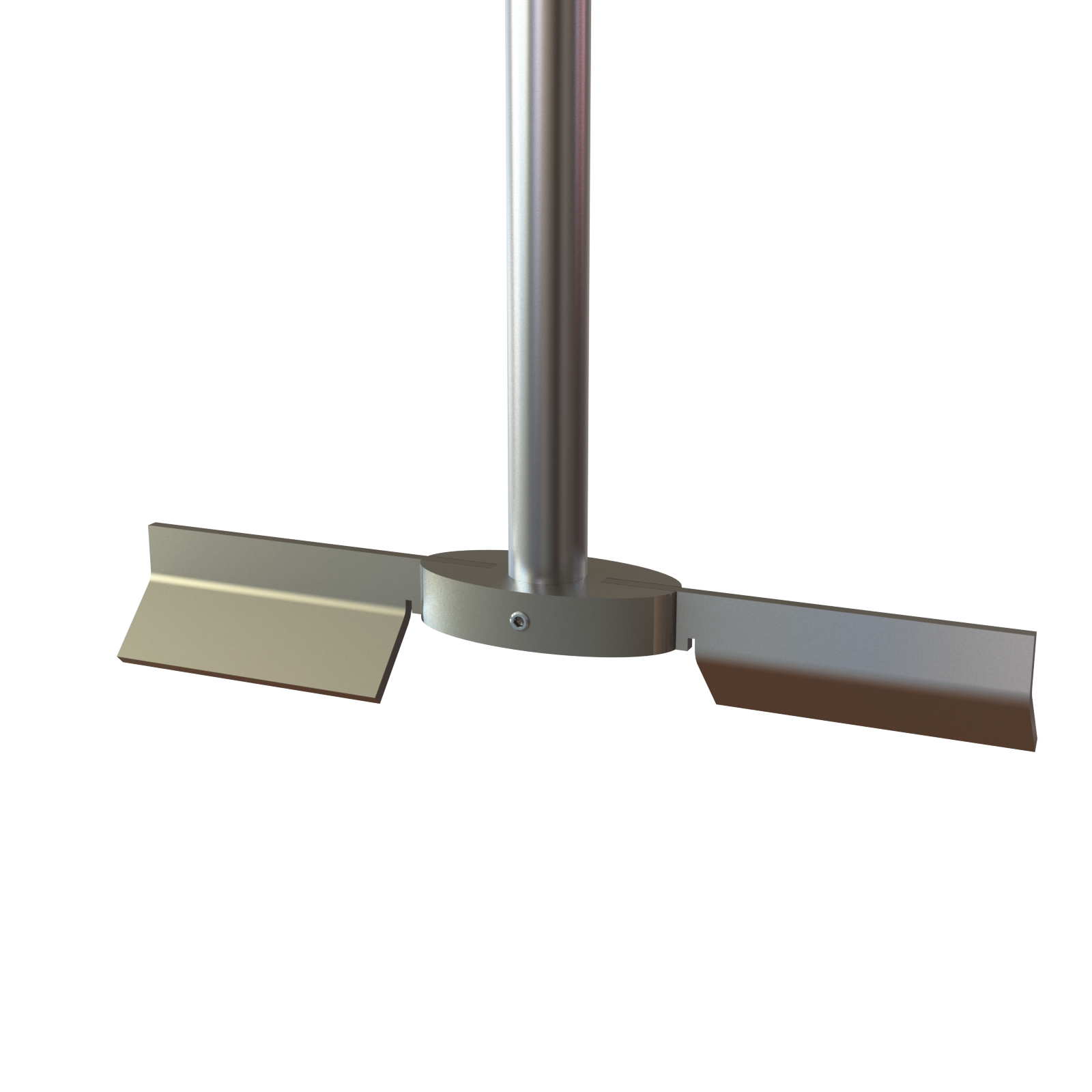

Impeller type Folding Impeller
Lead time 3 Business Days
Motor type Explosion Proof
Mount Tote Bracket
Mount dimension 36-48 x 10
Number of impellers 2
Phase 3 Ph.
Rpm 233
Shaft diameter 1 in.
Shaft length 32 in.
Shaft material 316SS
Voltage 230/460V
