Electric Gear Drive Lightweight Tote Bracket Mount Mixer

0 seconds ago Production Lead Time: 3 Business Days

Most of our products are made to order. The lead time is an estimation of how many days to fabricate this product before it ships.

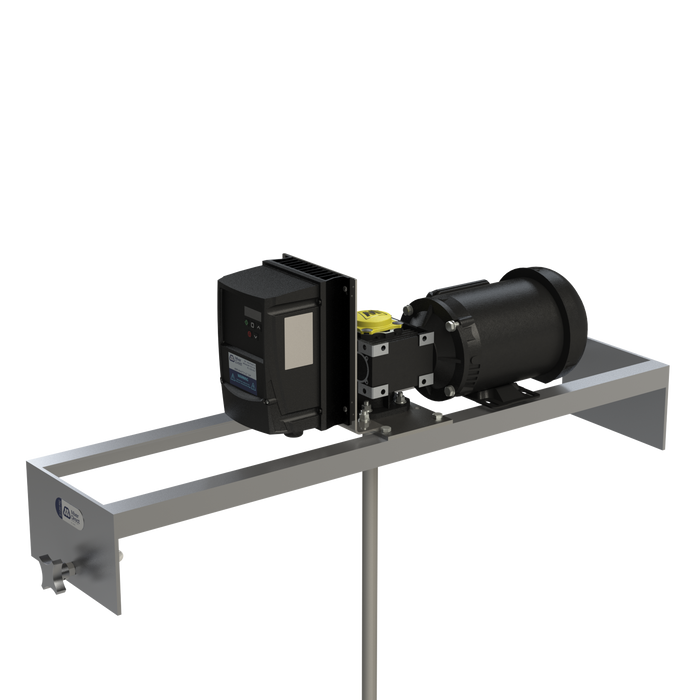

Designed to mix in IBC Totes, the lightweight tote bracket mount mixer can fit a range of 40-42" to accomodate most totes. This mixer also works well on any tank where mounting on top with a bracket would be appropriate. Features a lightweight aluminum frame which provides the strength to support the mixer and ability to easily change applications. The Totally Enclosed Fan Cooled (TEFC) electric motor is IP55 rated for protecting against water spray and dust ingress. This mixer utilizes a gearbox, allowing for lower RPMs and higher torque for even the most challenging applications. Add a Variable Frequency Drive (VFD) for speed control. The wetted materials are constructed of 316 or 304 grade stainless steel for high corrosion and abrasion resistance. Select your horsepower and an appropriately sized propeller, hydrofoil impeller, or folding impeller will be matched to your mixer.

Original price $0
Original price $2,779.00 - Original price $3,982.00
Original price
Current price $3,587.00
$2,779.00 - $3,982.00
Current price $3,587.00
SKU TBE050VGD
Product Specifications
Lead Time
3 Business Days
Mount
Lightweight Tote Bracket
Mount Dimension
40-42" x 10"
Motor Type
TEFC Electric
Gearbox Ratio
7.5:1
Horsepower
1/2 HP
Voltage
115V
Phase
1 Ph.
Speed Controller
Variable Frequency Drive (VFD)
Enclosure Type
IP55
RPM Range
46.6-233
Shaft Material
316SS
Shaft Diameter
1 in.
Shaft Length
32 in.
Impeller Type
Folding Impeller

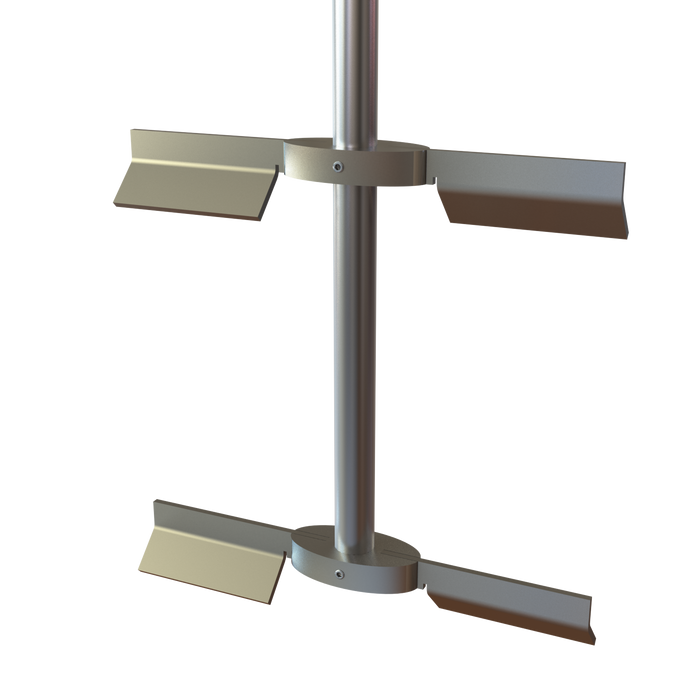

Number of Impellers
2
Impeller Diameter
10 in.
Impeller Material
316SS
Impeller Attachment
Set screw
