Electric Direct Drive Bung Mount Mixer

0 seconds ago Production Lead Time: 3 Business Days

Most of our products are made to order. The lead time is an estimation of how many days to fabricate this product before it ships.

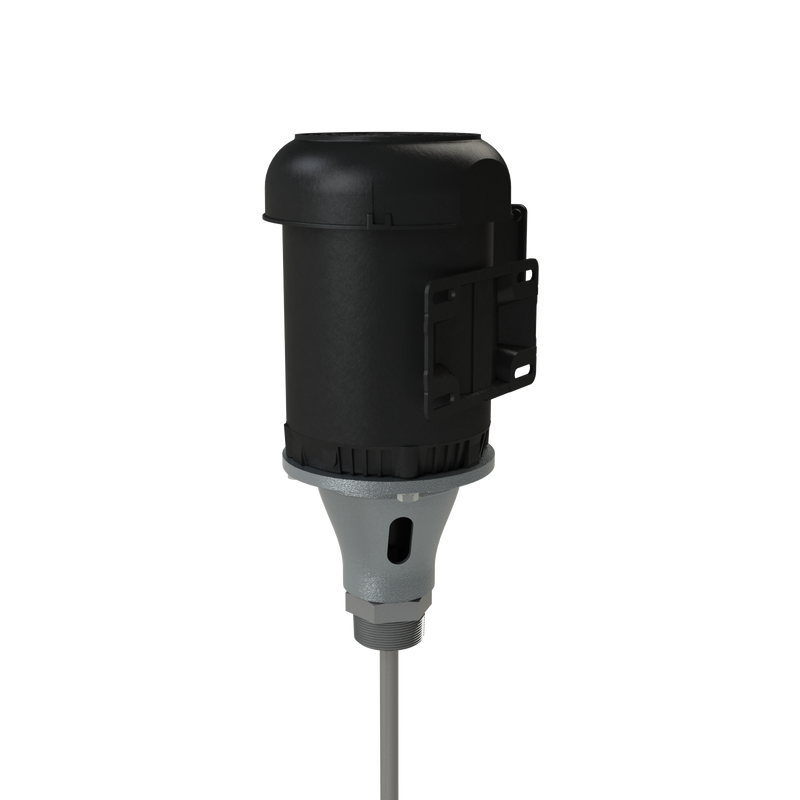

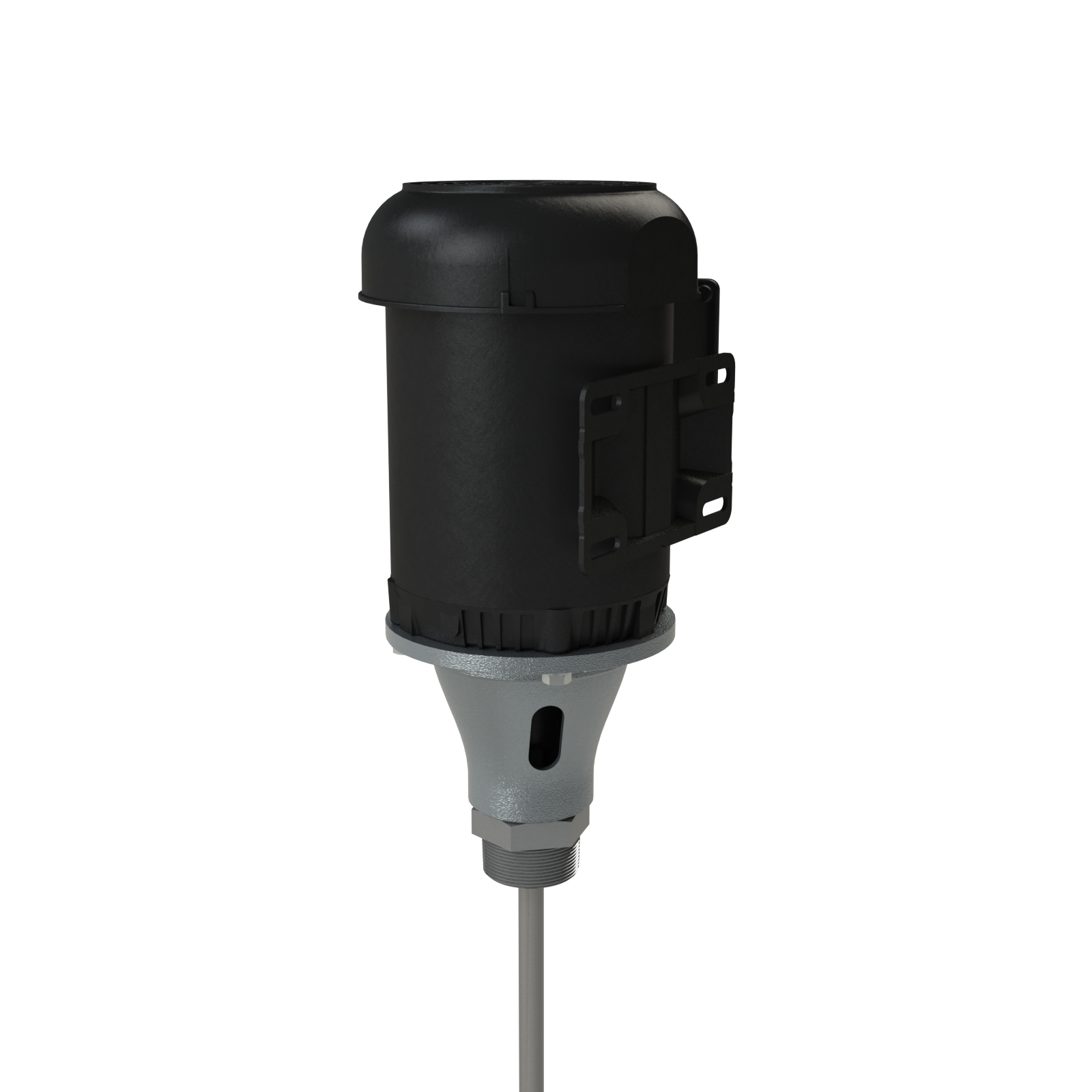

This bung mounted drum mixer threads directly into standard 2" NPT bung fittings, allowing for mixing in drums and vessels with closed lids.

Features of our bung mounted mixers include:

  • Compatible with both side and center placed bung openings

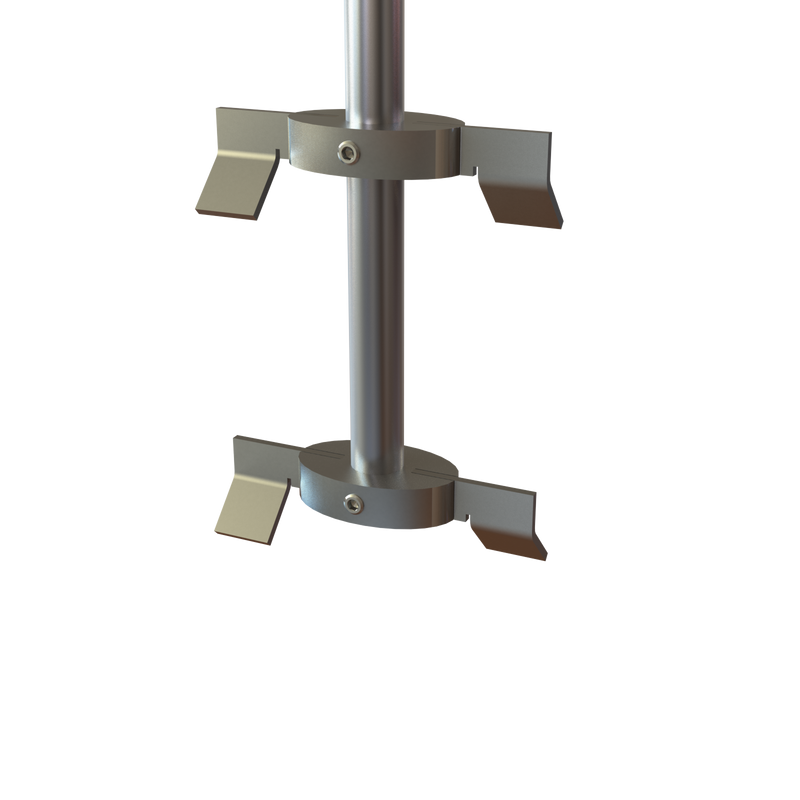

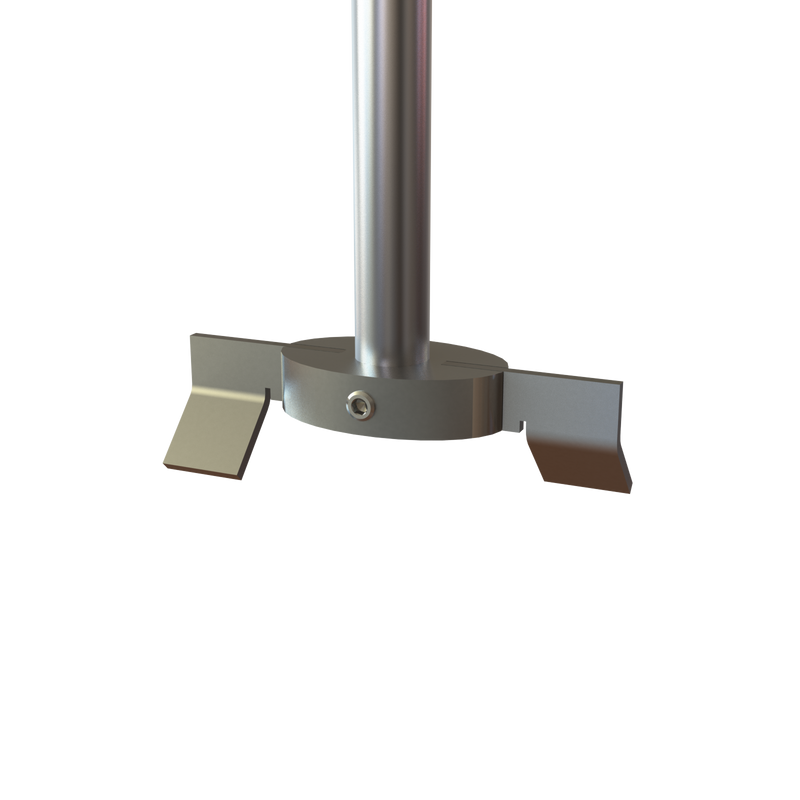

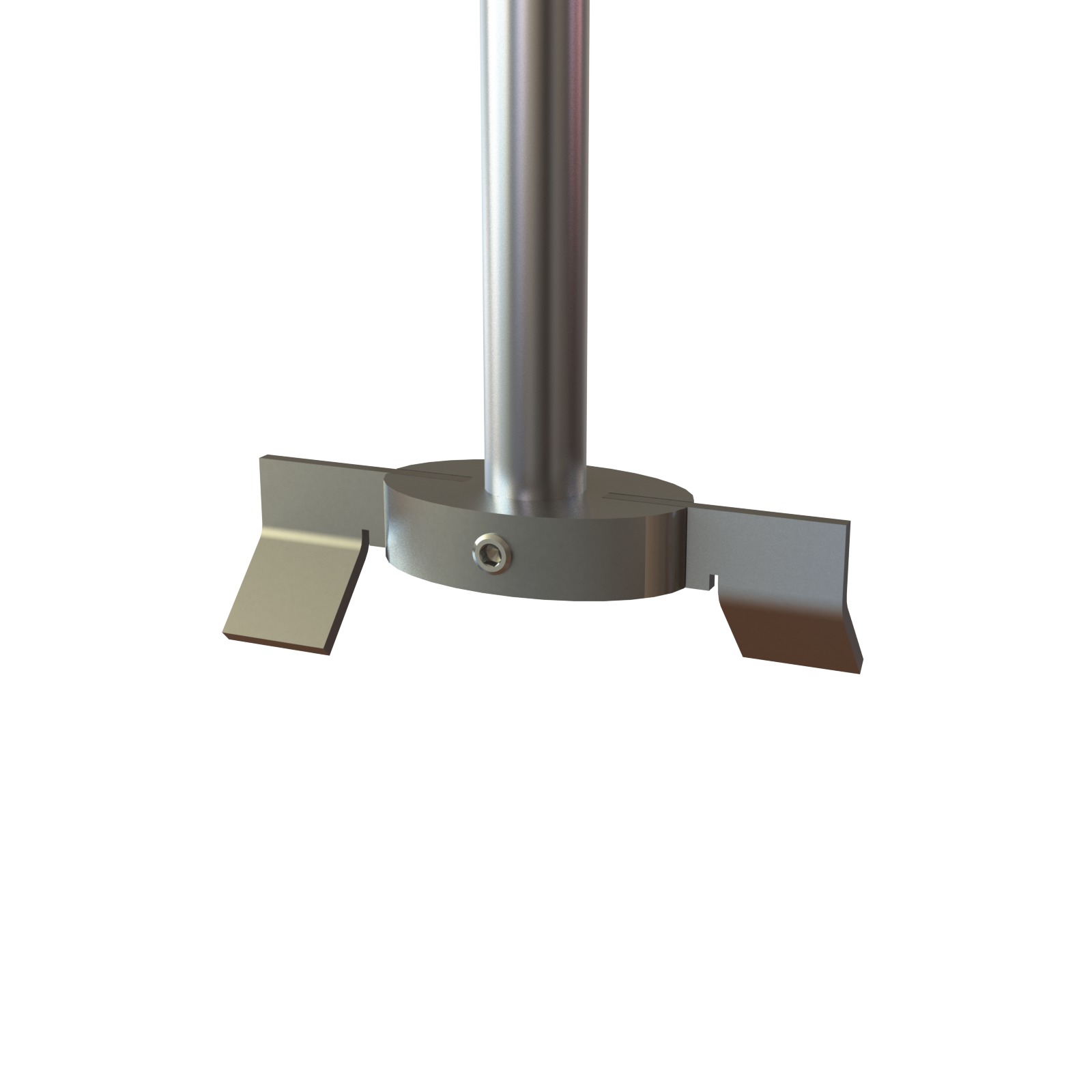

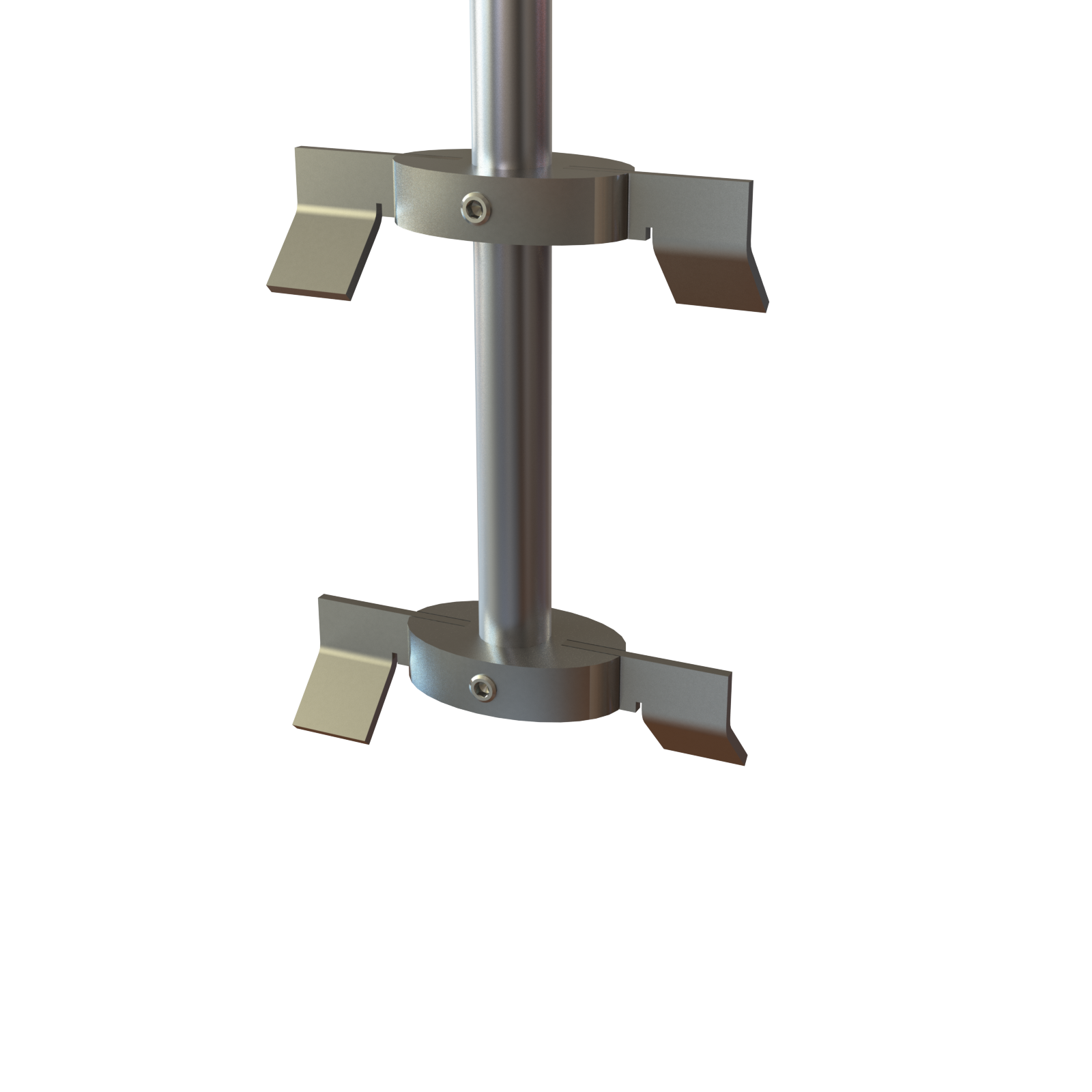

  • Folding impeller designed to slip through a bung opening and open when the motor is powered on

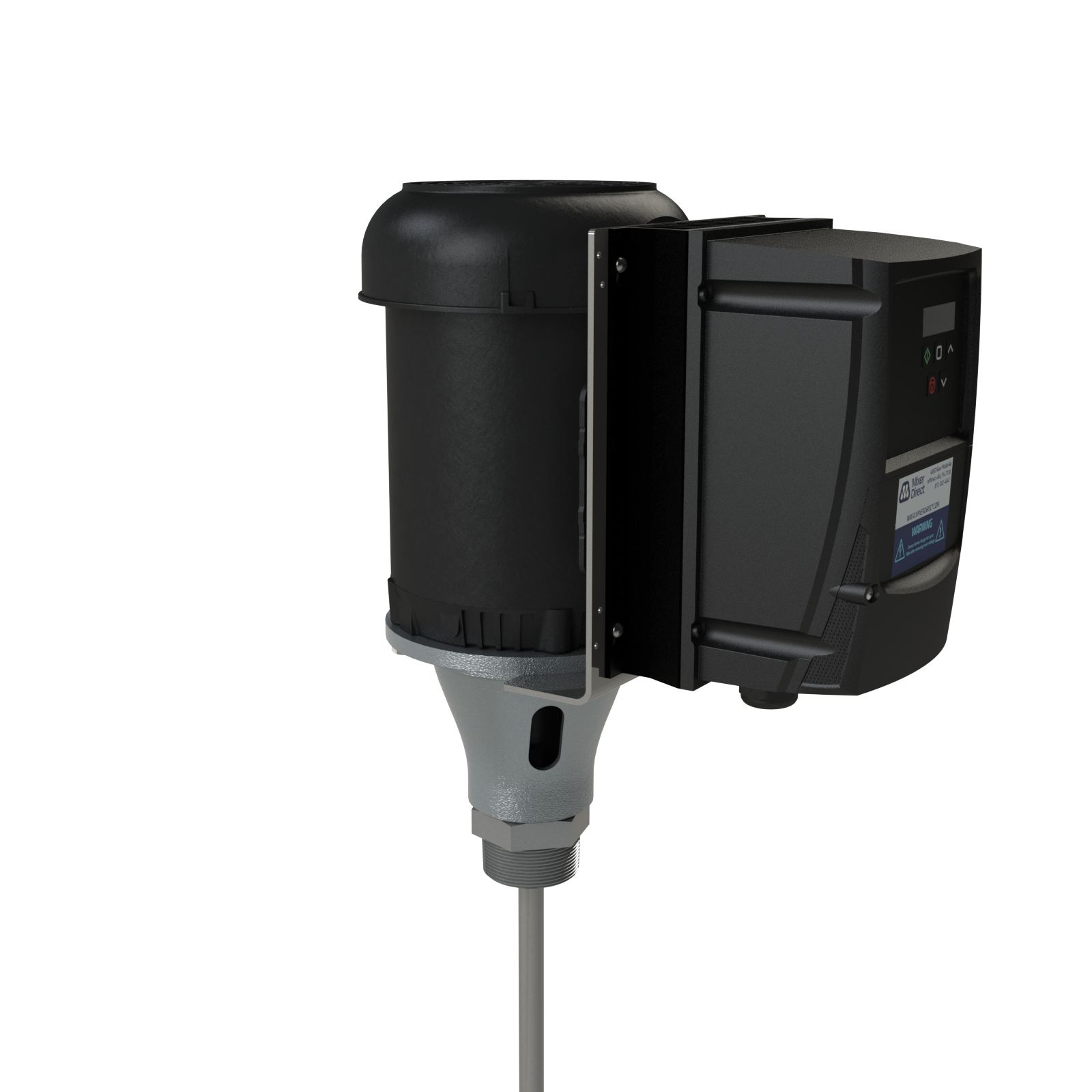

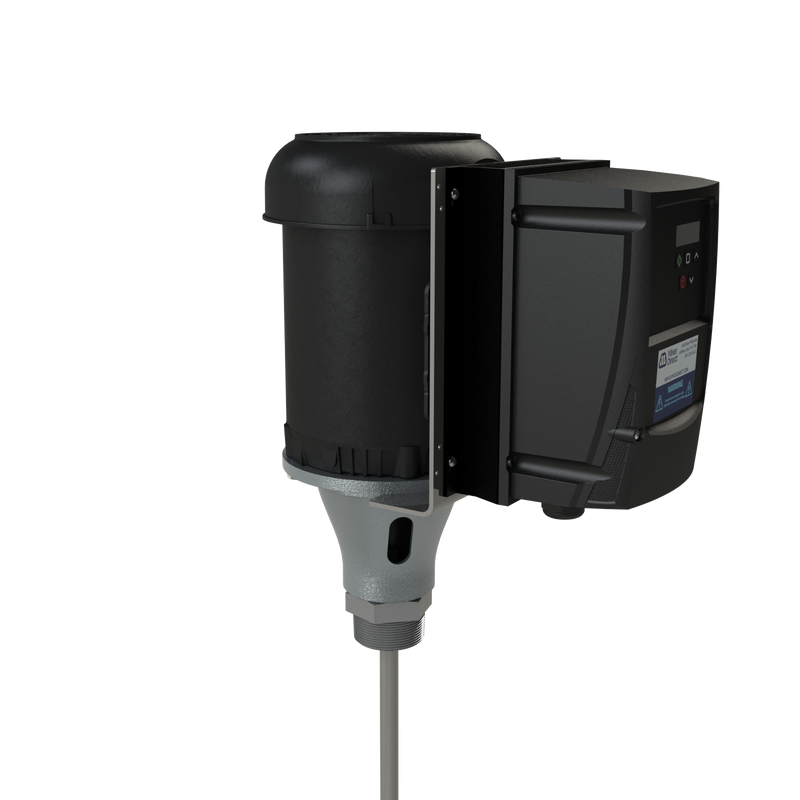

  • Heavy-duty electric motor with optional VFD upgrade
  • Heat-treated aluminum housing for durability and lightweight portability
  • Wetted materials made of 316 or 304 grade stainless steel for high corrosion and abrasion resistance
  • Offers options for selecting horsepower, and an appropriately sized folding impeller will be matched to the mixer.
Original price $0
Original price $1,489.00 - Original price $3,277.00
Original price
Current price $2,725.00
$1,489.00 - $3,277.00
Current price $2,725.00
SKU BUG050VDD-S-28
Product Specifications
Lead Time
3 Business Days
Mount
Bung Mount
Mount Dimension
2" NPT
Motor Type
TEFC Electric
Horsepower
1/2 HP
Voltage
115V
Phase
1 Ph.
Speed Controller
Variable Frequency Drive (VFD)
Enclosure Type
IP55
RPM Range
350-1750
Seal
Viton Lip Seal
Shaft Material
316SS
Shaft Diameter
.625 in.
Shaft Length
28 in.
Impeller Type
Folding Impeller
Number of Impellers
1
Impeller Diameter
4 in.
Impeller Material
316SS
Impeller Attachment
Set screw
