Electric Direct Drive Heavy Duty Clamp Mount Mixer

20-1000 Gallon | Heavy Duty & Portable

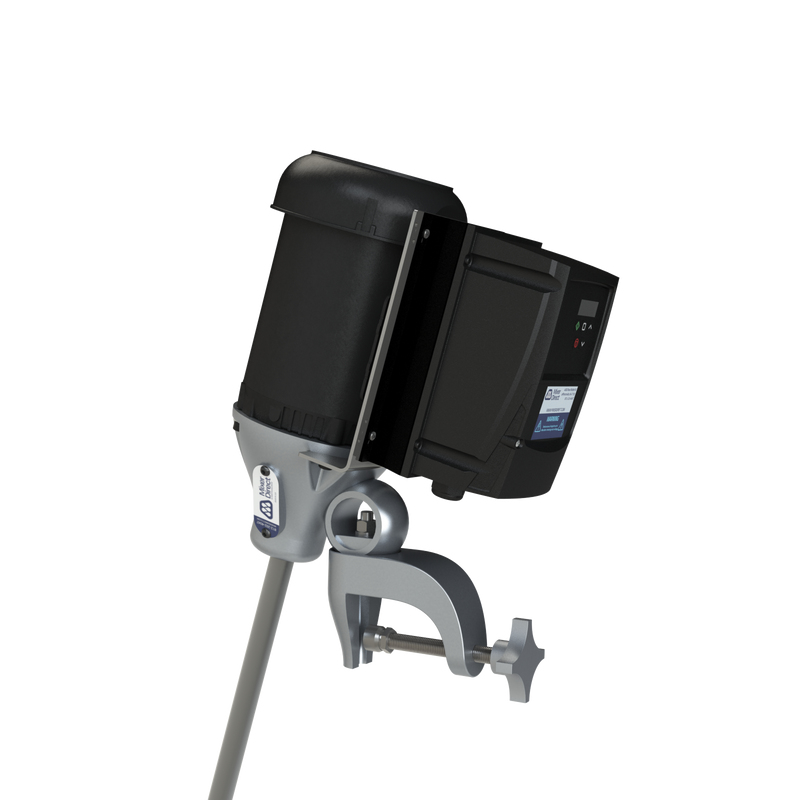

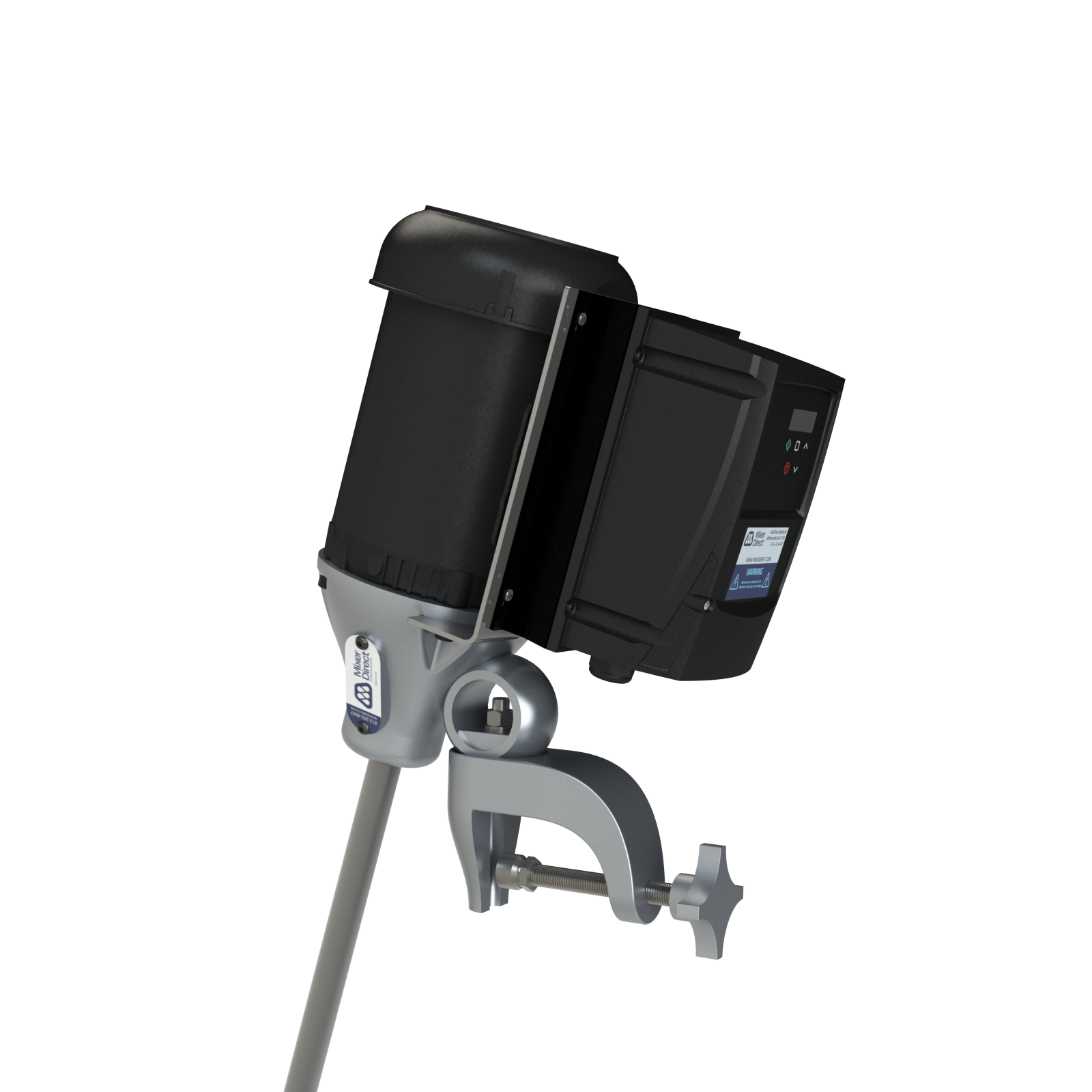

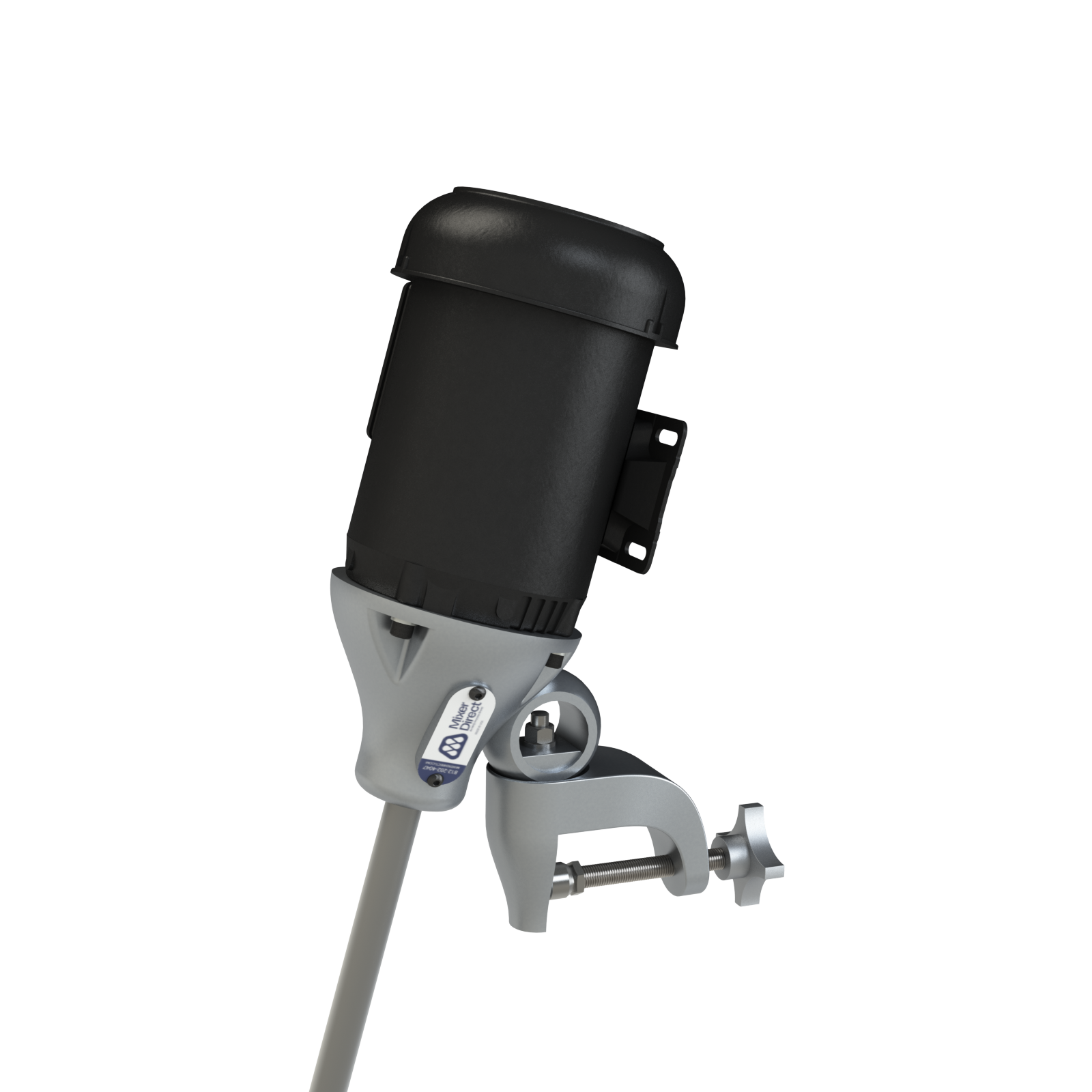

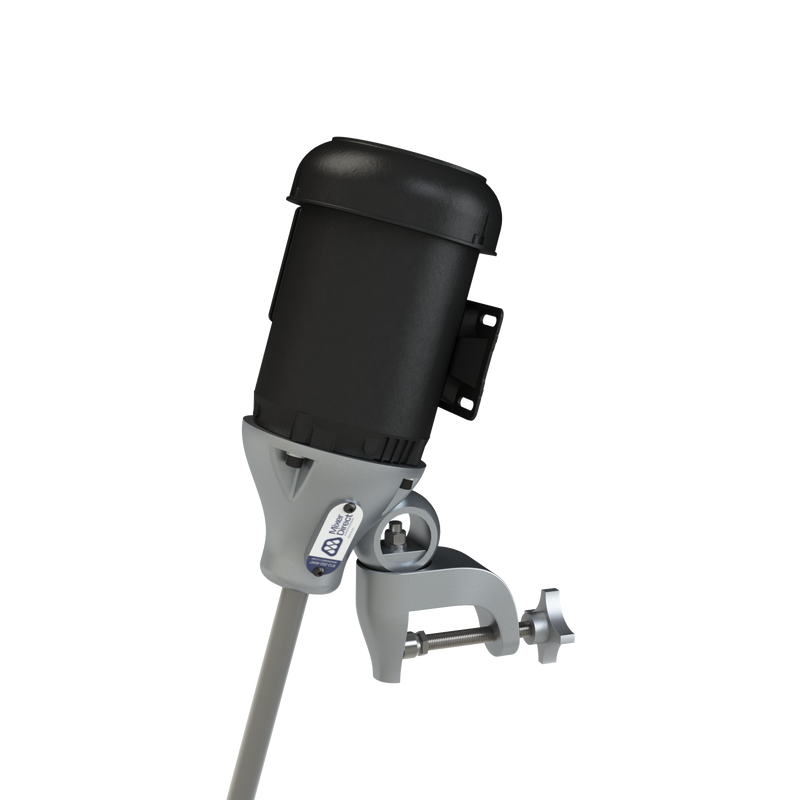

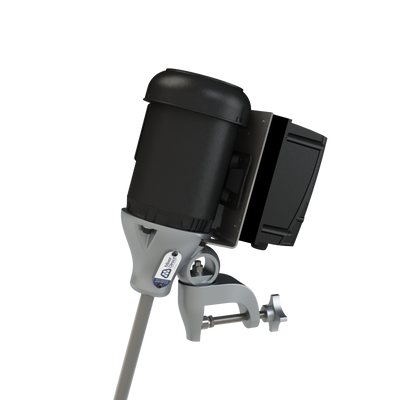

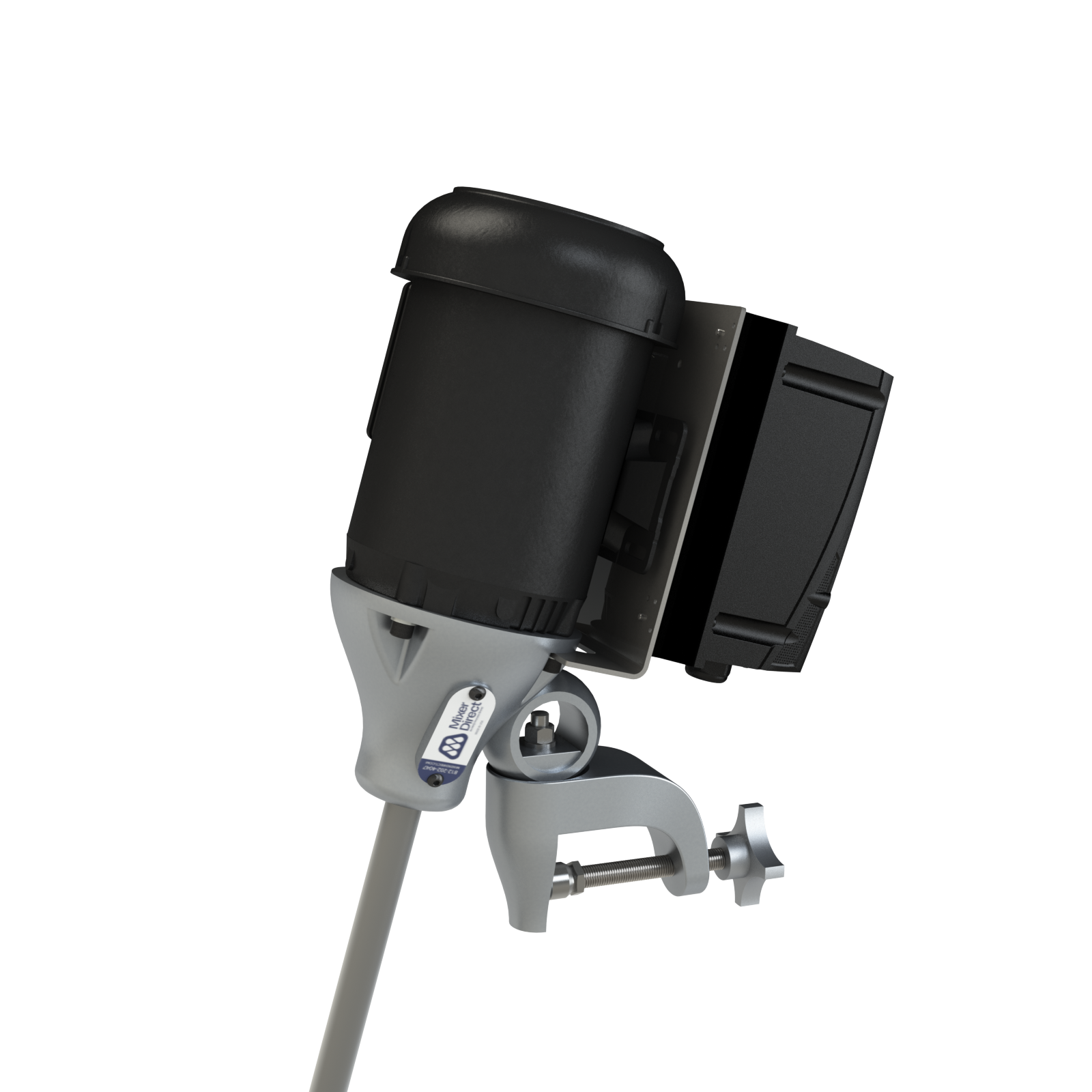

Electric Direct Drive Heavy Duty Clamp Mount Mixer

Name: Electric Direct Drive Heavy Duty Clamp Mount Mixer
Brand: Mixer Direct
SKU: HDC033VDD-32
Price: 2461.0 USD
Availability: InStock

Price

Lead Time: 3 Business Days

The workhorse of our portable mixer line, the heavy duty clamp mount mixer offers increased shaft stability and horizontal adjustment at the clamp for optimal placement of the impeller in your mixing vessel. Highly portable and durable.

Part Number: HDC033VDD-32

{"id":40378847526935,"title":"1\/3 \/ 32 \/ Yes","option1":"1\/3","option2":"32","option3":"Yes","sku":"HDC033VDD-32","requires_shipping":true,"taxable":true,"featured_image":{"id":29971714965527,"product_id":6831755624471,"position":3,"created_at":"2022-11-07T12:05:24-05:00","updated_at":"2022-11-07T12:05:24-05:00","alt":null,"width":1600,"height":1600,"src":"\/\/www.mixerdirect.com\/cdn\/shop\/products\/HDCVDD2.png?v=1667840724","variant_ids":[40378847526935,40378847559703,40378847592471,40378847625239,40378847658007,40378847854615,40378847887383,40378847920151,40378847952919,40378847985687,40378848182295,40378848215063,40378848247831,40378848280599,40378848313367,40378848509975,40378848542743,40378848575511,40378848608279,40378848641047,40378848837655,40378848870423,40378848903191,40378848935959,40378848968727,40378849165335,40378849198103,40378849230871,40378849263639,40378849296407,40378849493015,40378849525783,40378849558551,40378849591319,40378849624087]},"available":true,"name":"Electric Direct Drive Heavy Duty Clamp Mount Mixer - 1\/3 \/ 32 \/ Yes","public_title":"1\/3 \/ 32 \/ Yes","options":["1\/3","32","Yes"],"price":246100,"weight":23133,"compare_at_price":null,"inventory_quantity":-3,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":null,"id":22311785660439,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.mixerdirect.com\/cdn\/shop\/products\/HDCVDD2.png?v=1667840724"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

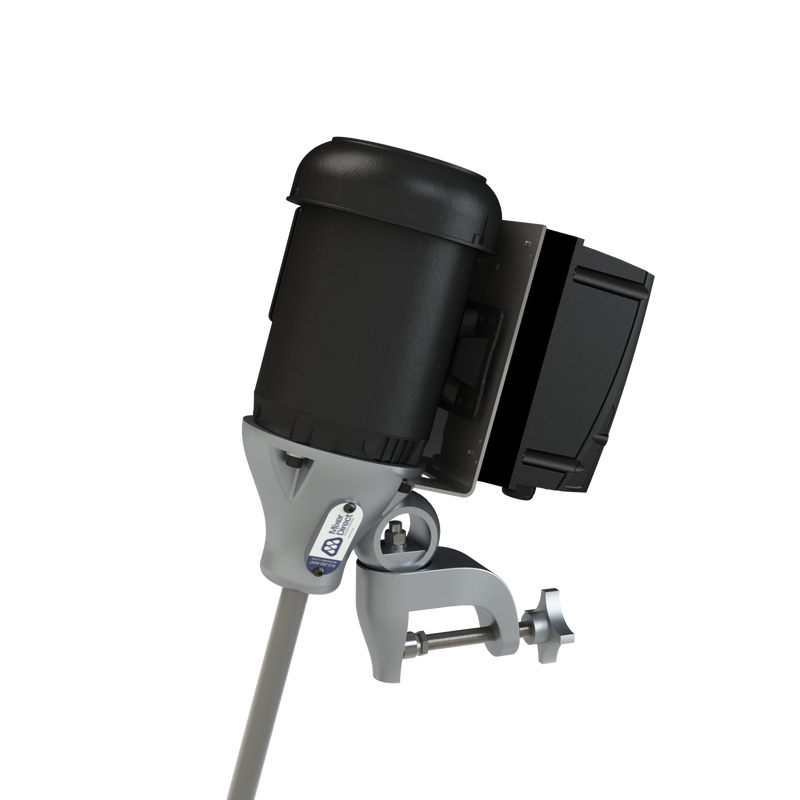

The heavy duty clamp mount mixer is the workhorse of our portable mixer line. A heat treated aluminum housing provide both outstanding durability and lightweight portability.

Our heavy duty clamp mount mixer includes:

Lower support bearing included to reduce radial shaft load on the motor, extending longevity
Adjustability for shaft positioning on two axes of rotation

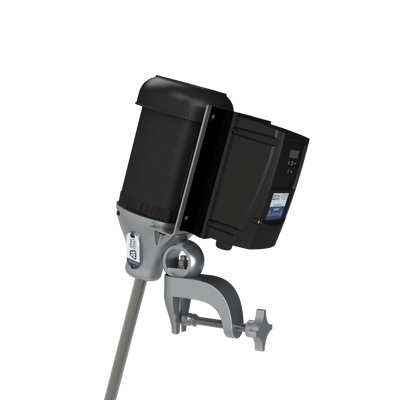

Heavy-duty electric motor with optional VFD
Wetted materials made of 316 or 304 grade stainless steel for corrosion and abrasion resistance
Option to select desired horsepower and shaft length
Appropriate propeller or hydrofoil impeller matched to the selected horsepower and shaft length

Item Number HDC033VDD-32
Enclosure type IP55
Horsepower 1/3 HP
Impeller attachment Set screw
Impeller diameter 4 in.
Impeller material 316SS

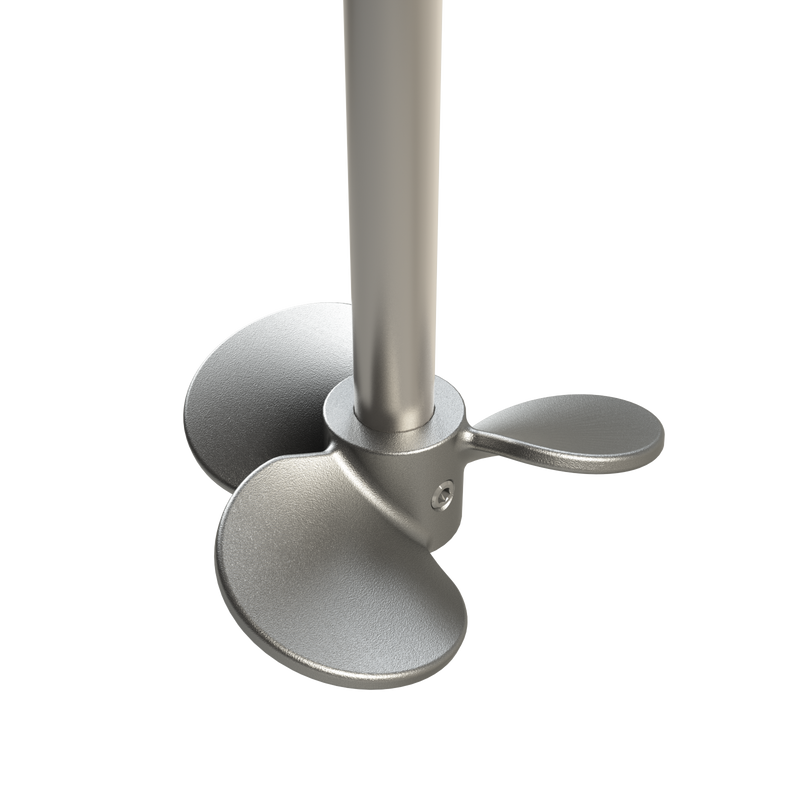

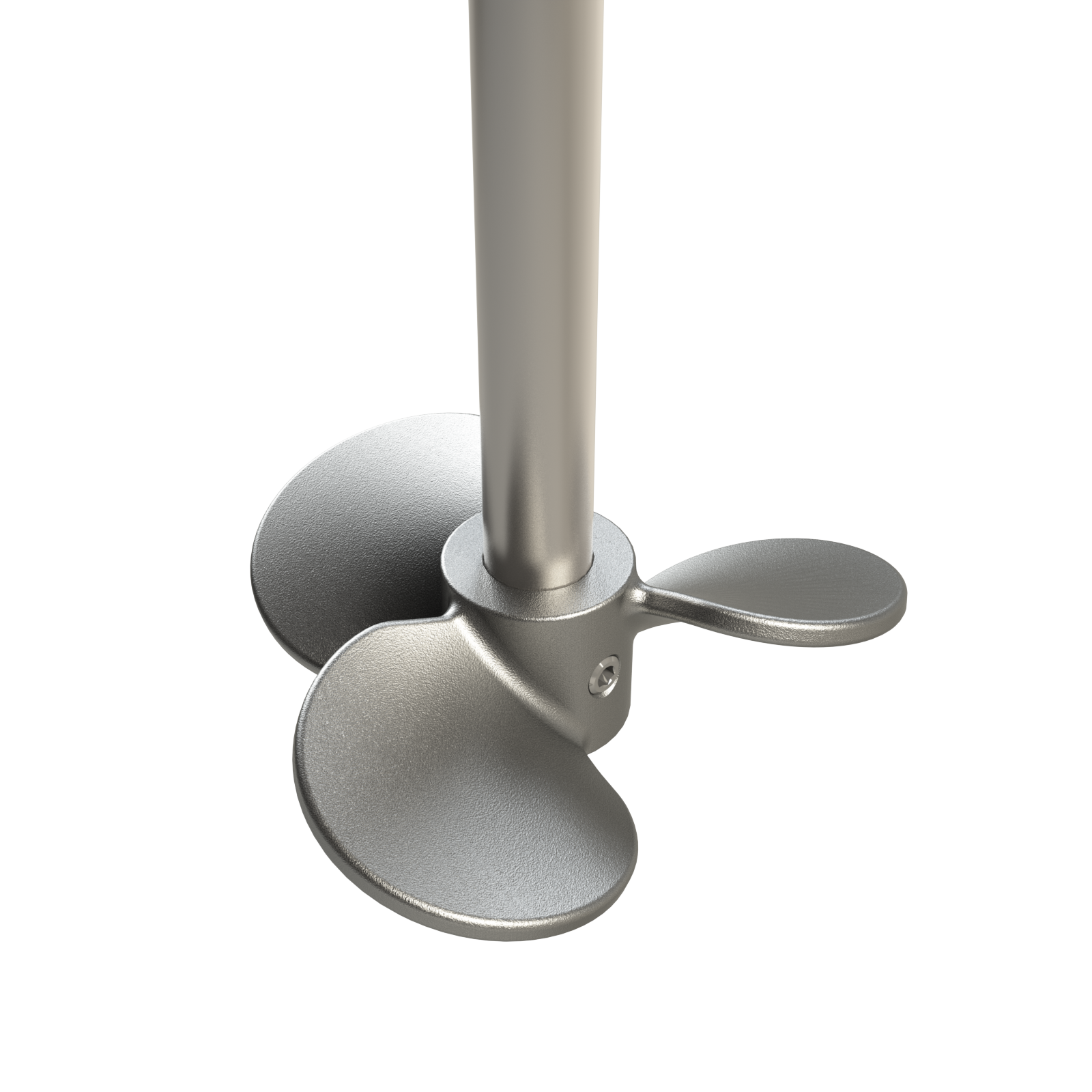

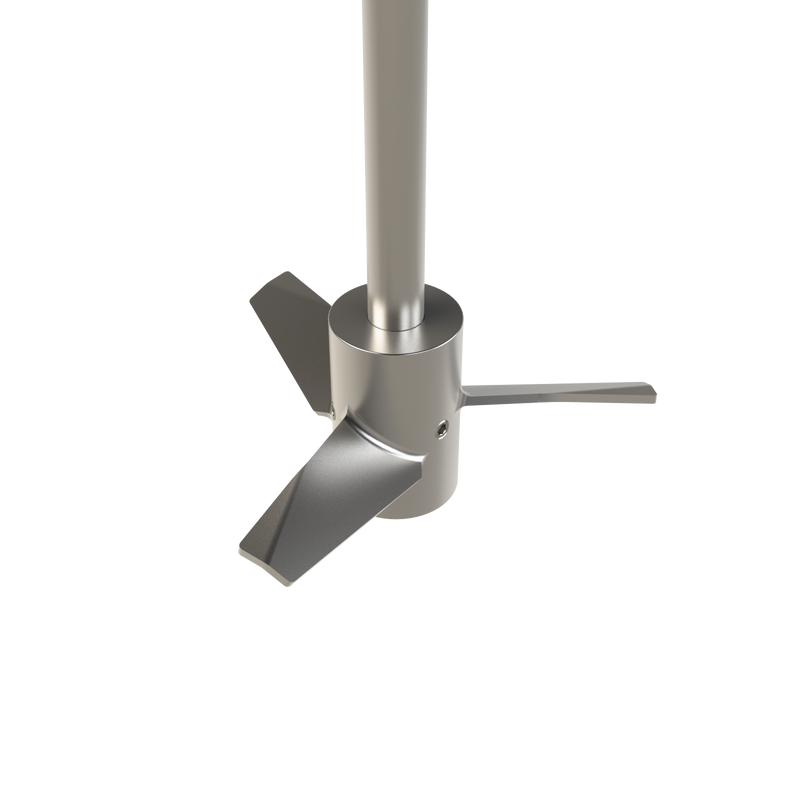

Impeller type Propeller
Lead time 3 Business Days
Motor type TEFC Electric
Mount Heavy Duty Clamp
Mount dimension 3.5 in.Max Opening
Number of impellers 1
Phase 1 Ph.
Rpm 350-1750
Shaft diameter 1 in.
Shaft length 32 in.
Shaft material 316SS
Speed controller Variable Frequency Drive (VFD)
Voltage 115V
