Electric Gear Drive Drum Bracket Mount Mixer

20-1000 Gallon | Drum Mounted | Portable

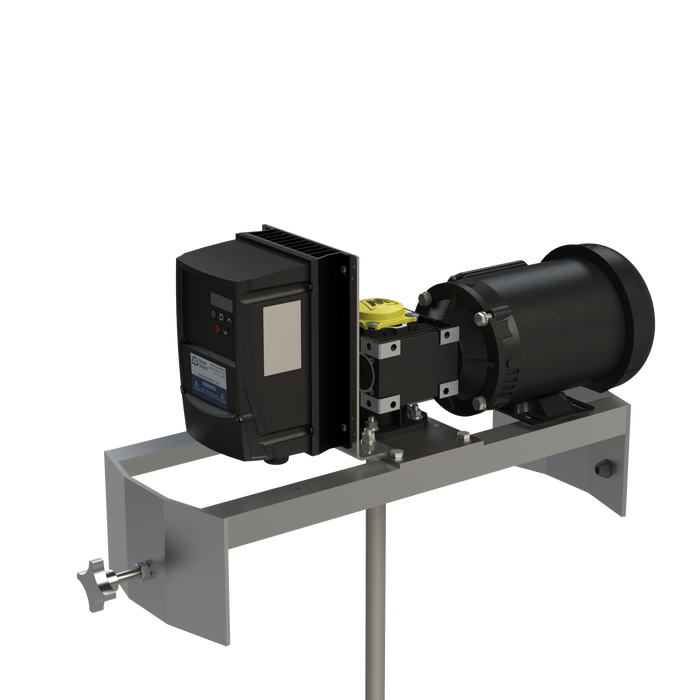

Electric Gear Drive Drum Bracket Mount Mixer

Name: Electric Gear Drive Drum Bracket Mount Mixer
Brand: Mixer Direct
SKU: DBM050VGD
Price: 3285.0 USD
Availability: InStock

Price

Lead Time: 7 Business Days

Mix your ingredients in open 55-gallon drums or similary shaped vessels with this drum clamp mixer. The mixer frame securely clamps onto the outside of the drum, allowing for mixing directly in the drum.

Part Number: DBM050VGD

[{"id":40378934591511,"title":"1\/2 \/ Yes","option1":"1\/2","option2":"Yes","option3":null,"sku":"DBM050VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Drum Bracket Mount Mixer - 1\/2 \/ Yes","public_title":"1\/2 \/ Yes","options":["1\/2","Yes"],"price":328500,"weight":31751,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378934624279,"title":"1\/2 \/ No","option1":"1\/2","option2":"No","option3":null,"sku":"DBM050EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Drum Bracket Mount Mixer - 1\/2 \/ No","public_title":"1\/2 \/ No","options":["1\/2","No"],"price":252300,"weight":31751,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378934657047,"title":"1 \/ Yes","option1":"1","option2":"Yes","option3":null,"sku":"DBM100VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Drum Bracket Mount Mixer - 1 \/ Yes","public_title":"1 \/ Yes","options":["1","Yes"],"price":356200,"weight":31751,"compare_at_price":null,"inventory_quantity":-2,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378934689815,"title":"1 \/ No","option1":"1","option2":"No","option3":null,"sku":"DBM100EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Drum Bracket Mount Mixer - 1 \/ No","public_title":"1 \/ No","options":["1","No"],"price":270700,"weight":31751,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378934722583,"title":"1.5 \/ Yes","option1":"1.5","option2":"Yes","option3":null,"sku":"DBM150VGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Drum Bracket Mount Mixer - 1.5 \/ Yes","public_title":"1.5 \/ Yes","options":["1.5","Yes"],"price":353200,"weight":31751,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40378934755351,"title":"1.5 \/ No","option1":"1.5","option2":"No","option3":null,"sku":"DBM150EGD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electric Gear Drive Drum Bracket Mount Mixer - 1.5 \/ No","public_title":"1.5 \/ No","options":["1.5","No"],"price":276300,"weight":31751,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Our drum bracket mount mixers are uniquely designed to attach to standard 55-gallon drums. The mixer brackets angled end plate provides a rigid mount to the 55-gallon drum allowing for more vigorous mixing of materials.

Features of our drum bracket mount mixers include:

Heavy-duty electric motor with optional VFD upgrade
Gearbox allows for lower RPMs and higher torque
Wetted materials made of 316 or 304 grade stainless steel for high corrosion and abrasion resistance
Offers options for selecting horsepower and an appropriately sized propeller or hydrofoil impeller matched to your mixer

Item Number DBM050VGD
Enclosure type IP55
Gearbox ratio 7.5:1
Horsepower 1/2 HP
Impeller attachment Set screw
Impeller diameter 8 in.
Impeller material 316SS
Impeller type Axial Flow Turbine
Lead time 7 Business Days
Motor type TEFC Electric
Mount Drum Bracket Mount
Mount dimension 24-26x10
Number of impellers 1
Phase 1 Ph.
Rpm 46.6-233
Shaft diameter 1 in.
Shaft length 28 in.
Shaft material 316SS
Speed controller Variable Frequency Drive (VFD)
Voltage 115V
