Electric Direct Drive Drum Lid Mount Mixer

1 second ago Production Lead Time: 3 Business Days

Most of our products are made to order. The lead time is an estimation of how many days to fabricate this product before it ships.

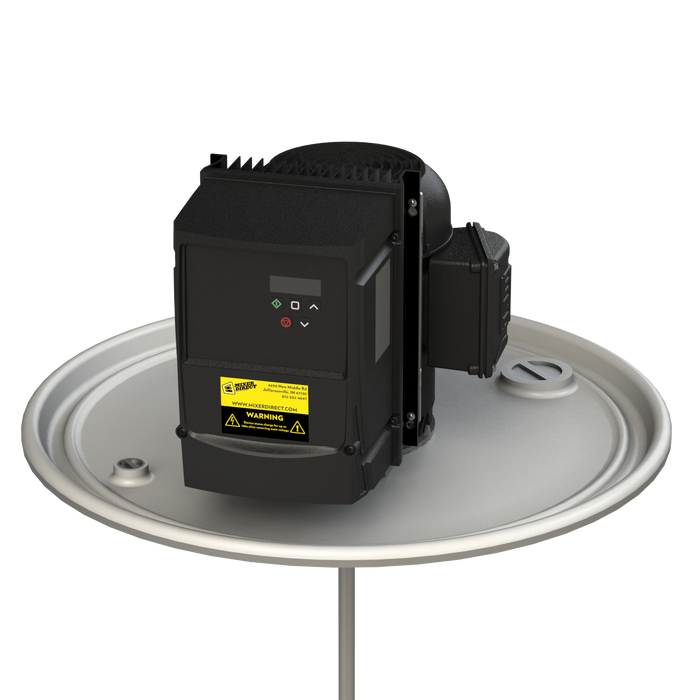

This drum lid mounted mixer is optimized for mixing in standard 55-gallon drums, offering low shear agitation and blending of your process fluids. The carbon steel drum lid mounts securely to the drum with standard clamp rings commonly supplied with the 55-gallon drum.

Features of our drum lid mount mixers include:

  • Equipped with a heavy-duty electric motor with optional VFD upgrade
  • Wetted materials made of 316 or 304 grade stainless steel for high corrosion and abrasion resistance

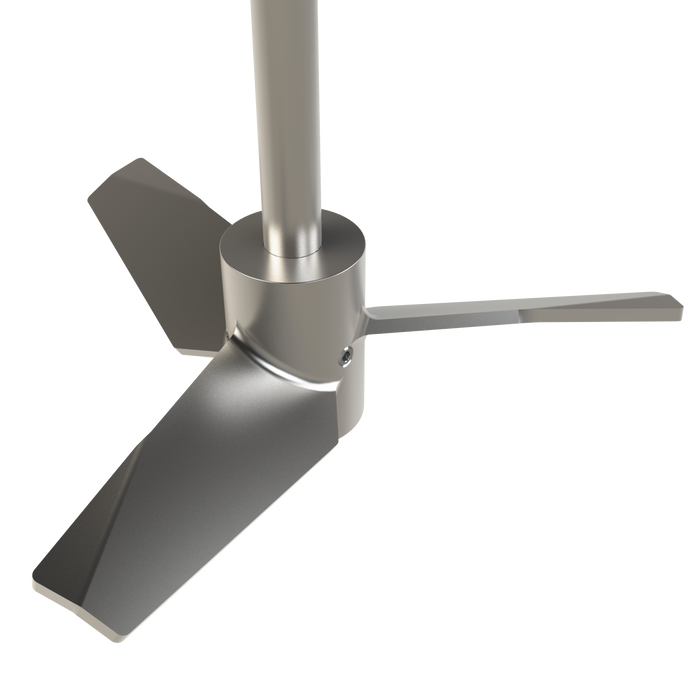

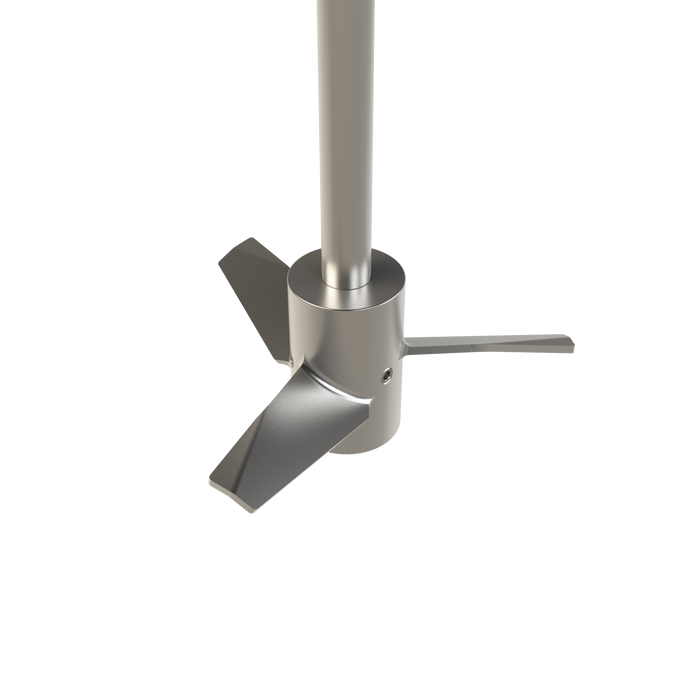

  • Offers options for selecting horsepower and an appropriately sized propeller or hydrofoil impeller matched to the mixer
Original price $0
Original price $1,296.00 - Original price $2,810.00
Original price
Current price $2,265.00
$1,296.00 - $2,810.00
Current price $2,265.00
SKU DLM033VDD-28
Product Specifications
Lead Time
3 Business Days
Mount
Drum Lid Mount
Mount Dimension
24" diameter
Motor Type
TEFC Electric
Horsepower
1/3 HP
Voltage
115V
Phase
1 Ph.
Speed Controller
Variable Frequency Drive (VFD)
Enclosure Type
IP55
RPM Range
350-1750
Shaft Material
316SS
Shaft Diameter
.625 in.
Shaft Length
28 in.

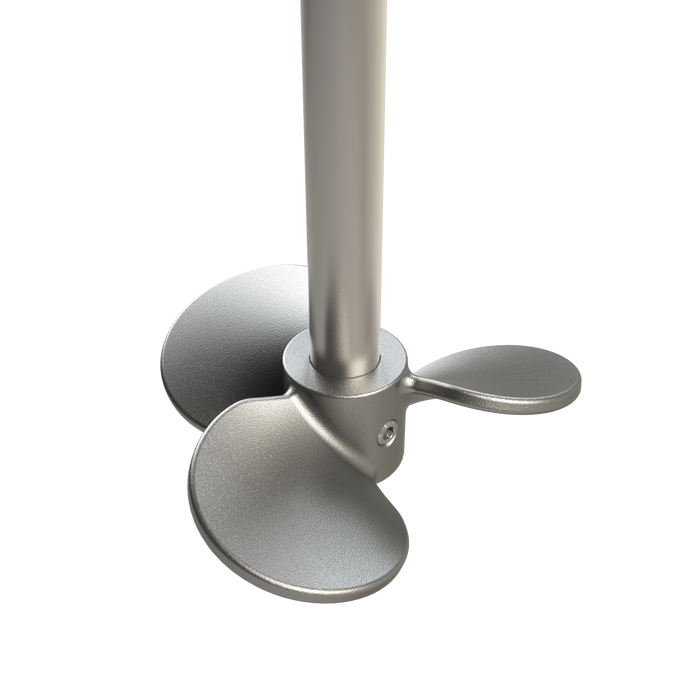

Impeller Type
Propeller
Number of Impellers
1
Impeller Diameter
4 in.
Impeller Material
316SS
Impeller Attachment
Set screw
